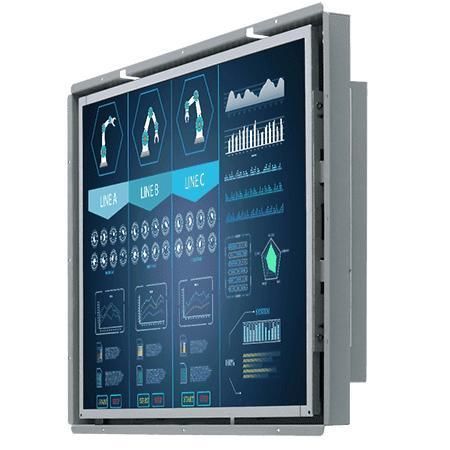

Resistive touch screen monitor R19L300-OFM1

for digital signagefor industrial machinesfor HMI interface

Overview
Winmate R19L300-OFM1 is a 19-inch open frame display for industrial visualization, control rooms and equipment monitoring. Designed for OEM integration and continuous operation in industrial environments, it provides flexible mounting and multiple video inputs for system integrators and machine builders.

Key features

• 19” diagonal, 1280 x 1024 resolution
• VGA (default), HDMI and DVI (optional)
• Open frame design with VESA mount support
• Optional touch and protection glass variants

Product highlights
Low power design and effective thermal management enable extended operation in production and control environments. Multiple mounting options, including rear and VESA mounting, support integration into kiosks, ATMs, vending machines and industrial enclosures. The open frame construction provides the panel with a supporting structure without an external bezel, simplifying OEM installation and reducing integration footprint.

Modular I/O and customization options allow selection of display ports, panel brightness, glass treatments and power input variants to match project requirements. Typical use cases include factory HMIs, control room displays and embedded signage.

Certifications

• CE
• FCC

Accessories

• Included (typical): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: remote controller, alternative power input (24V DC)

Technical specifications

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 250 nits
• Contrast ratio: 1000:1
• View angles: 85 / 85 / 80 / 80 (L/R/U/D)
• Display color: 16.7M colors
• Active area: 376.32 x 301.06 mm
• Touch / Glass options: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO ports: USB: 1 x USB for touch (optional); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Power rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws
