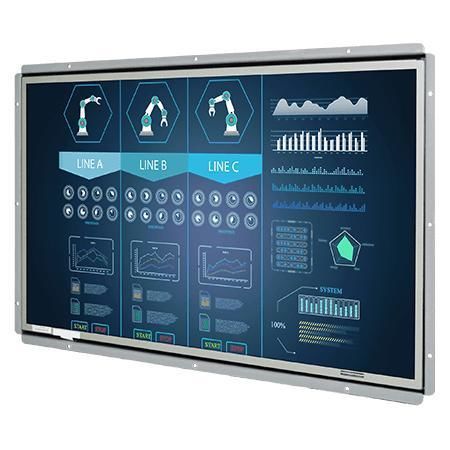

LCD monitor W18L100-OFA2

resistive touch screenindustrialfor industrial machines

Overview
Winmate W18L100-OFA2 is an 18.5-inch open-frame display designed for industrial visualization, control rooms and equipment monitoring. It is intended for OEMs, system integrators and industrial buyers requiring long-lifecycle displays for embedded or mission-critical installations. The design focuses on low power consumption, effective heat dissipation and flexible mounting options.

Key features

• 18.5 inches, 1366 x 768 resolution, 450 nits panel brightness
• VGA (default) with optional HDMI and DVI inputs
• Open-frame construction with VESA and rear mounting options
• Front IP65 available in Open Frame series for kiosk and ATM integration

Product highlights
The unit supports fanless operation and metal enclosure for reliable long-term use in production and embedded systems. Multiple mounting solutions (rear mount and VESA) simplify integration into kiosks, ATMs, vending machines, casino monitors, airport displays and industrial enclosures. Configurable options include touch type (resistive, SAW), protection glass, panel brightness and IO configurations to match application requirements.

Certifications

• CE
• FCC

Technical specifications

• Model: W18L100-OFA2
• Display size: 18.5 inches
• Resolution: 1366 x 768
• Panel brightness: 450 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80 (deg)
• Display color: 16.7M Colors
• Active area: 409.8 x 230.4 mm
• Touch/Glass options: Resistive touch (optional); Protection glass without touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional); 1 x USB for touch (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speaker optional
• Dimensions: 451 x 278 x 48 mm
• Weight: 4 kg
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12 V DC input (24 V DC optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional accessories: Remote controller (optional)
