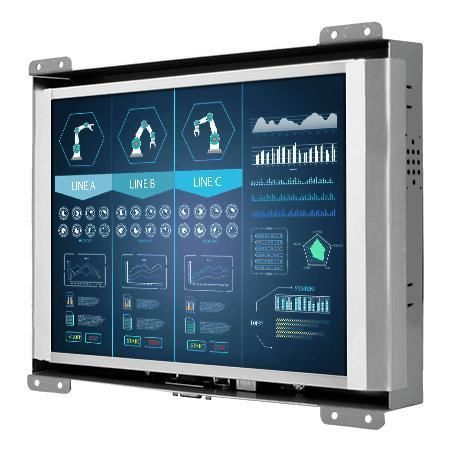

LCD monitor R10L100-OFT2HB

TFTresistive touch screenfor displays

Overview
Winmate R10L100-OFT2HB is a 10.4-inch open-frame high-brightness display designed for industrial visualization, control rooms and equipment monitoring. It delivers reliable long-lifecycle performance for OEMs, system integrators and embedded applications, with configurable I/O and touch options.

Key Features

• 10.4-inch TFT LCD, 1024 x 768 resolution
• Panel brightness: 1000 nits for high ambient readability
• Open-frame form factor with VESA and rear mounting
• Video inputs: VGA (default); HDMI and DVI optional
• Touch options: resistive, SAW or protection glass (no touch)
• Designed for 24/7 industrial operation with low power consumption
• Optical bonding and anti-reflective front glass
• Certifications: CE, FCC

Product Highlights
The open-frame monitor provides the LCD module and supporting structure without an external bezel, enabling direct integration into ATMs, kiosks, vending machines, casino monitors, airport displays and other embedded equipment. High brightness, optical-grade bonding and anti-reflective glass improve visibility in bright or humid environments while multiple mounting options simplify installation.

Design & Customization
Available customization includes panel brightness variants, cover glass surface treatments, I/O port configurations, touch solutions, power connector styles and customer logo branding. Regional power options and accessories vary by product configuration.

Certifications

• CE
• FCC

Applications

• Industrial visualization and machine monitoring
• Control rooms and operator panels
• Embedded kiosks, ATMs, vending machines and information displays
• High ambient light installations requiring high brightness

Specifications

• Model: R10L100-OFT2HB
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 88/88/88/88
• Display color: 16.2M colors
• Active area: 210.4 x 157.8 mm
• Touch / Glass options: Resistive; Protection glass w/o touch; SAW (optional)
• USB: 1 x USB for touch (optional)
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speakers optional
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Power rating: 12V DC input (24V DC optional)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
• Mounting: Open frame; rear and VESA mounting supported
• Accessories included: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies)
