LCD monitor W27L100-OFA1

industrial27"1920 x 1080

Overview

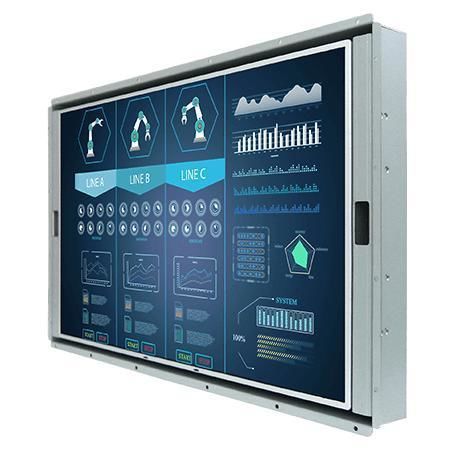

W27L100-OFA1 is a 27-inch open-frame display designed for industrial visualization, control rooms and equipment monitoring. It delivers Full HD 1920 x 1080 resolution, a fanless metal enclosure and multiple mounting options for embedded and OEM integration.

Key features

• 27" Full HD (1920 x 1080) panel — 300 nits brightness, 3000:1 contrast
• Open-frame architecture for kiosk, ATM and OEM integration
• Standard VGA input; HDMI and DVI available as options
• VESA and rear mounting options; fanless metal enclosure for reliable operation

Applications
Suitable for industrial control rooms, machine HMIs, kiosks, vending machines, casino monitors and transport information displays where long-term availability, easy integration and low power consumption are required.

Certifications

• CE
• FCC

Technical specifications

• Display size: 27.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel brightness: 300 nits
• Contrast ratio: 3000:1
• Viewing angles: 89 / 89 / 89 / 89
• Display color: 16.7M colors
• Active area: 599 x 337 mm
• Touch / Glass: Protection glass (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

IO & Mechanical

• IO ports: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional); 1 x USB for touch (optional); audio line-in (3.5 mm) (optional); 2 x speaker (optional)
• Mechanical: Dimensions 688.8 x 427 x 56 mm; weight 8.8 kg; enclosure: metal; cooling: fanless
• Mounting: VESA mount / Rear mount

Accessories & Power

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller; power input 12V DC (24V DC optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
