LCD monitor W43L300-OFA1

touch screenfor industrial machinesfor HMI interface

Product name

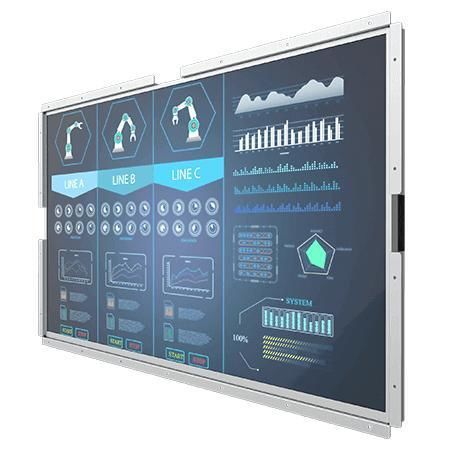

Open Frame Touch Monitor W43L300-OFA1 (Winmate) — 43” Full HD (1920 x 1080), 500 nits, VESA / rear mount

Overview
Winmate W43L300-OFA1 is a 43-inch open frame touch monitor engineered for industrial visualization, control rooms and equipment monitoring. The metal enclosure and fanless design provide low-noise, reliable operation for continuous-use environments. Multiple mounting and I/O options simplify integration into kiosks, ATMs, vending machines and OEM systems.

Key features

• 43” (42.5” active) Full HD 1920 x 1080
• Panel brightness: 500 nits; Contrast ratio: 4000:1
• Open frame design with VESA and rear mounting
• Multiple video inputs: 1 x VGA (default); HDMI and DVI optional
• Optional protection glass and touch variants
• Metal enclosure with fanless cooling for quiet, durable operation
• Front certifications: CE, FCC

Main benefits / highlights

• Designed for continuous industrial operation with low power consumption and effective heat dissipation
• Flexible installation options (VESA / rear mount) for OEM integration and kiosk applications
• High image quality and wide viewing angles for reliable visual monitoring
• Customization available: panel brightness, glass treatment, I/O configuration, product size and logo

Certifications

• CE
• FCC

Accessories (standard and optional)

• Standard: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller, speakers, additional I/O modules (product dependent)

Technical specifications

• Model: W43L300-OFA1
• Commercial designation: 43” Open Frame Touch Monitor
• Size: 42.5 inches (diagonal)
• Resolution: 1920 x 1080 (Full HD)
• Panel brightness: 500 nits
• Contrast ratio: 4000:1
• View angles: 89 / 89 / 89 / 89
• Display color: 16.7M colors
• Active area: 940.896 x 529.254 mm
• Dimensions: 999.4 x 594 x 73.5 mm
• Enclosure: Metal
• Mounting: VESA mount / Rear mount
• Cooling system: Fanless design
• Power rating: 24V DC in
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• IO ports:
  • Video: 1 x VGA (Default)
  • Video (optional): 1 x HDMI (Optional)
  • Video (optional): 1 x DVI (Optional)
  • Audio: Audio line in (3.5 mm) (Optional)
  • Audio (optional): 2 x Speaker (Optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
