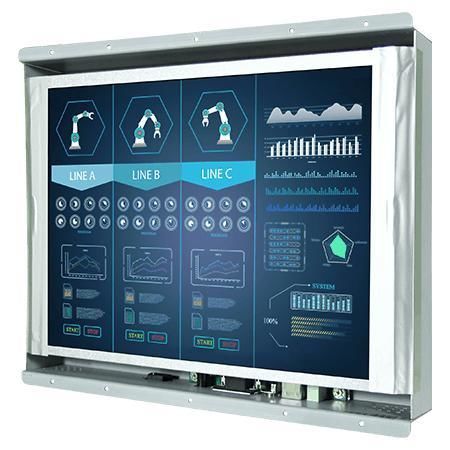

Resistive touch screen monitor R12T600-OFL1HB

industrialfor displaysfor industrial machines

Overview
Winmate R12T600-OFL1HB is a 12.1-inch open-frame high brightness display designed for industrial visualization, control rooms and equipment monitoring. It supports continuous 24/7 operation, a metal enclosure interface, fanless cooling and long lifecycle availability for OEMs and system integrators.

Key features

• 12.1 inches, 800 x 600 resolution
• VGA (default) and HDMI (optional) inputs
• Open frame design for embedded integration
• VESA mount / rear mount options
• High brightness: 1000 nits

Product highlights

• Low power consumption and effective heat dissipation for reliable long-term use in production environments.
• Multiple mounting solutions (rear and VESA) for flexible installation in machines and kiosks.
• Open-frame monitor: supporting structure protects electronic components without a full enclosure—suitable for ATMs, vending machines, casino monitors, airport displays and kiosks.
• High brightness with anti-reflective, optically bonded front glass to improve readability in direct sunlight and high-humidity conditions by eliminating air gaps and reducing reflections.
• Industrial-grade reliability: rugged design with configurable housing and panel options for factory environments.
• Consistent image quality: industrial display modules assembled for stable visual performance.
• Customization options: panel brightness, cover glass treatment, display ports and regional power plug styles.

Certifications

• CE
• FCC

Technical specifications

• Model: R12T600-OFL1HB
• Size: 12.1 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch (Optional); SAW Touch (Optional)
• Resolution: 800 x 600
• Panel Brightness: 1000 nits
• Contrast Ratio: 700:1
• View Angles: 80, 80, 75, 65
• Display Color: 16.2M Colors
• Active Area: 246 x 184.5 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen (Optional)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 300 x 250 x 38 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (varies by product)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Button: 5 Keys: -, +, Power, Esc, Enter
