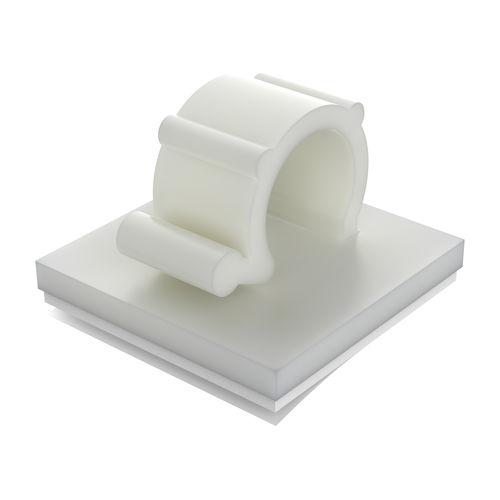

Plastic cable clamp MGRA

polyethyleneself-adhesivereusable

Product description
The MGRA adhesive cable clip secures and routes wires and cables using a polyethylene foam adhesive backing and a releasable clip. It is suited to applications where cables must be mounted and removed repeatedly and adheres to a wide range of surfaces. Typical industrial uses include mechanics, machinery and electronics.

Features

• Adhesive backing (polyethylene foam tape) with high bond strength
• Releasable clip for easy wire removal
• Suitable for repeated mounting and removal
• Good conformability, high temperature and solvent resistance
• RoHS compliant
• UL94: V2
• IP: no protection rating specified
• Measures expressed in Millimeters

Available references and dimensions
Reference | A x B | D | C | L | H | h | a x b
01301200010 | 19,00 x 19,00 | 9,00 | 7,50 | 12,50 | 2,00 | 1,00 | 18,50 x 18,50
01301200011 | 25,00 x 25,00 | 13,00 | 10,00 | 16,50 | 2,00 | 1,00 | 24,50 x 25,50

Drawings / Certifications / Media
Drawing PDF available. UL94 rating: V2. RoHS compliant. Video available for product demonstration.

Technical specifications

• Model: MGRA
• Brand: ISC Plastic Parts
• Backing material: Polyethylene foam tape (adhesive)
• Clip type: Releasable clip for wires/cables
• Typical applications: Mechanics, machinery, electronics, cable routing
• Flammability (UL94): V2
• RoHS: Compliant
• IP rating: Not specified
• Units of measure: Millimeters
• Available references: 01301200010, 01301200011
