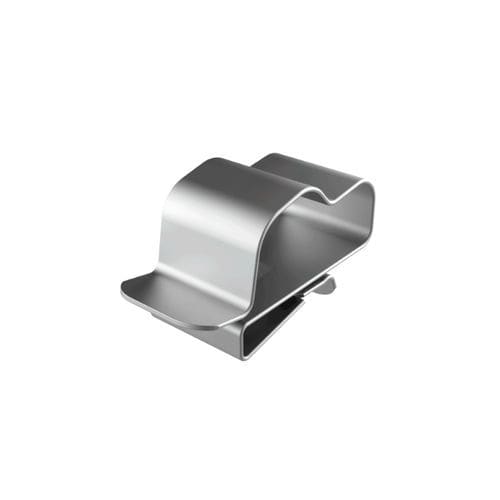

Stainless steel cable clamp SFB

snap-onsnap-lockcorrosion-resistant

Product description
The SFB panel edge clip secures and guides two heterogeneous cables on panel edges without structural profiles. Manufactured from heat-treated AISI 410 stainless steel, the clip delivers high mechanical strength and corrosion resistance suitable for photovoltaic arrays and industrial environments. The part features two dedicated cavities: one for module cables up to Ø 7.6 mm and one for micro-inverter cables Ø 10.5–12 mm. Installation is by manual pressure; the locking tab keeps the clip firmly anchored. Removal or repositioning is performed with a screwdriver. A slot in the tab accepts cable ties or clamps for secondary fastening. Rounded edges protect cable insulation and reduce the risk of abrasion.

Performance and certification
Thickness: 0.508 mm. Retention force: up to 6.8 kg. Minimum certified service life: 20 years. Operating temperature range: -40 °C to +300 °C. Certification: c-UL-us. RoHS: compliant. UL94: not available. IP: not available. Measures expressed in: Millimeters.

Applications

• Photovoltaic modules
• Electrical systems and control panels
• Marine installations
• Telecommunications
• Industrial machinery

Reference table (mm)
Reference | Max. cable range (d1) | Cable range (d2) | Panel thickness
02012000303 | 7.60 | 10.50 to 12.00 | 1.30 to 3.00
02012000304 | 7.60 | 10.50 to 12.00 | 3.00 to 6.40

Drawing / Video
Drawing PDF: not directly available on page. Video: available showing the product and usage.

Characteristics / Technical specifications

• Model: SFB
• Brand: ISC Plastic Parts
• Material: Heat-treated AISI 410 stainless steel
• Thickness: 0.508 mm
• Retention force: up to 6.8 kg
• Minimum certified service life: 20 years
• Operating temperature range: -40 °C to +300 °C
• Certifications: c-UL-us
• RoHS: compliant
• Cavities: two differentiated cavities — one for module cables up to Ø 7.6 mm and one for micro-inverter cables Ø 10.5–12 mm
• Assembly: manual pressure with locking tab; removal/repositioning with screwdriver
• Additional fastening: slot in tab allows cable ties or clamps
• Edge design: rounded edges to prevent cable insulation damage
• Typical applications: photovoltaic installations, electrical/control panels, marine, telecommunications, industrial machinery
• Reference variants and panel thickness ranges: see reference table above
