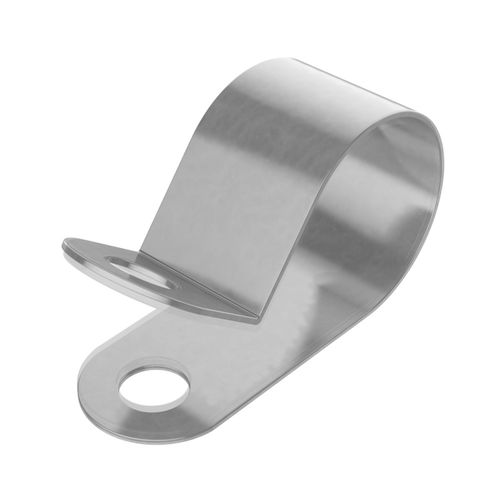

Stainless steel cable clamp MASA

with screw mountcorrosion-resistantfor photovoltaic applications

Product description
The MASA clamp is designed for the secure fastening of cables and tubing in demanding environments. It is manufactured from AISI 304 stainless steel (SS), providing high mechanical strength and corrosion resistance. The body features smooth radiused edges to prevent damage to cable insulation. All versions require a 5.2 mm mounting hole suitable for a #10 screw. Not recommended for marine salt water environments.

Certifications & compliance
RoHS: Compliant
UL94: Not rated / not applicable
IP: Not rated / not applicable
Measures expressed in: Millimeters

Variants / Dimensions (table)
Reference | Maximum bundle diameter (D) | W | H
02012000100 | 4.70 | 12.70 | 5.20
02012000101 | 6.30 | 12.70 | 5.20
02012000102 | 9.50 | 12.70 | 5.20
02012000103 | 12.70 | 12.70 | 5.20
02012000104 | 15.90 | 12.70 | 5.20
02012000105 | 17.10 | 12.70 | 5.20
02012000106 | 22.20 | 12.70 | 5.20

Technical features / specifications

• Material: AISI 304 stainless steel (SS)
• Coating: TPE-E (thermoplastic copolymer), non-toxic, odorless
• Electrical properties: excellent
• Low-temperature flexibility: good
• Approvals: FDA food contact approval; DFARS compliance
• RoHS: compliant
• Required mounting hole: 5.2 mm (suitable for #10 screw)
• Recommended environments: demanding environments; not recommended for marine salt water
• Measures unit: millimeters
