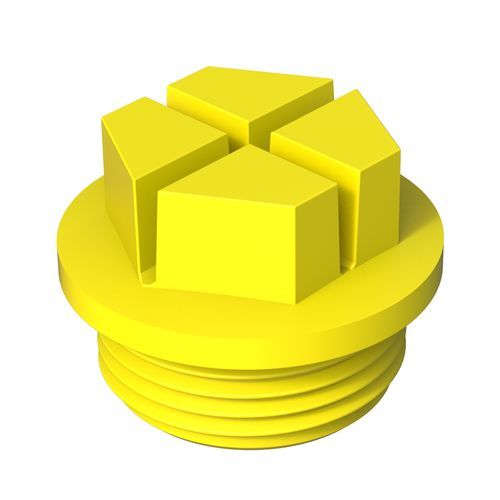

Cylindrical plug DTRU

threadedPA6 plasticPA6

Product description
Threaded plugs designed to protect internal threads in hydraulic and pneumatic equipment during surface treatment and transport. Suitable for metric and GAS/BSP thread forms. PA6 material is recommended for high-temperature applications (up to 80°C). Some references are available with an O-ring for sealing.

Standards & compliance
Drawing PDF: available
UL94: not available
IP: not available
RoHS: compliant
Measures expressed in: Millimeters
Video: available

Variants (table)
Reference | Suitable for | D | H1 | H2 | L | SW | Thread Type
01500740001 | M10 x 1,00 | 14,00 | 5,50 | 11,50 | 17,00 | 10 | M
01500740056 | M33 x 2,00 | 39,60 | 11,50 | 15,60 | 27,10 | 27 | M
01500740057 | M42 x 2,00 | 49,80 | 11,50 | 16,60 | 28,10 | 36 | M
01500740063 | 1 in | 39,70 | 13,60 | 15,80 | 29,40 | 27 | GAS/BSP
01500740064 | 1 · 1/4 in | 49,80 | 13,50 | 17,80 | 31,30 | 36 | GAS/BSP
01500740065 | 1 · 1/2 in | 55,40 | 13,50 | 16,50 | 30,00 | 41 | GAS/BSP
01500740066 | 2 in | 68,20 | 13,50 | 16,60 | 30,10 | 55 | GAS/BSP

Characteristics / Technical specifications

• Function: protect internal threads of hydraulic and pneumatic components during coating and transport
• Recommended material: PA6 for high-temperature service (up to 80°C)
• Sealing option: some references available with O-ring
• RoHS: compliant
• UL94: not specified / not available
• IP rating: not specified
• Measures expressed in: Millimeters
• Model / family: DTRU
• Available variants: references listed in the variants table
• Documentation and media: 2D drawing (PDF), renders and product video available
