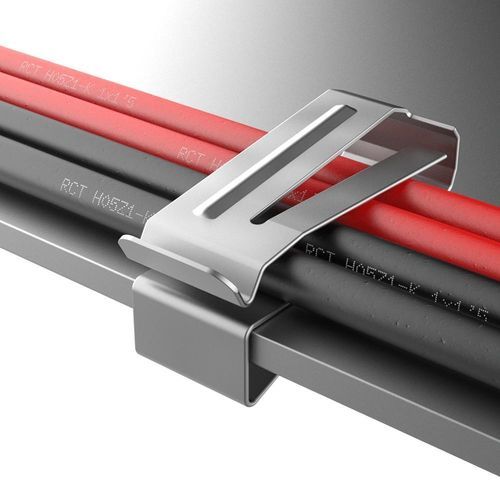

Stainless steel cable clamp SFH

reusablecorrosion-resistantfor photovoltaic applications

Description
The SFH panel edge clip secures and guides four homogeneous cables in parallel to provide compact, safe cable management for industrial, renewable energy and marine installations. Manufactured from heat-treated AISI 410 stainless steel, the clip combines elevated mechanical strength with corrosion resistance suitable for demanding environments.

Cable capacity and installation
This model accepts up to 4 cables, each Ø 5.1–7.6 mm. Installation is by manual pressure: the clip locks onto the panel edge via an integrated locking tab. Removal or repositioning is performed with a screwdriver. The locking tab includes an extra slot for use with cable ties or clamps to reinforce fixation. Edges are rounded to prevent damage to cable insulation.

Materials, durability and certifications
Material: heat-treated AISI 410 stainless steel. Clip thickness: 0.508 mm. Minimum service life: 20 years. Certifications and compliance: UL, c-UL-us, DFARS. RoHS: compliant. Operating temperature range: -40 °C to +300 °C. UL94 and IP rating: not specified. Measurements expressed in millimeters.

Applications

• Photovoltaic modules (solar)
• Control panels
• Electrical systems
• Telecommunications
• Marine installations
• Industrial machinery
• Mobility solutions

Product references and dimensions
Reference | Cable range (d) | Panel thickness | C | B | H
02012000312 | 5.10 to 7.60 | 1.40 to 3.20 | 33.80 | 12.70 | 9.10
02012000313 | 5.10 to 7.60 | 3.20 to 6.40 | 33.80 | 12.70 | 9.10

Technical characteristics / specifications

• Brand: ISC Plastic Parts
• Commercial denomination (model): SFH
• Material: heat‑treated AISI 410 stainless steel
• Clip thickness: 0.508 mm
• Cable capacity: up to 4 parallel homogeneous cables
• Cable diameter range: Ø 5.1 – 7.6 mm each
• Panel thickness options: 1.40–3.20 mm (ref 02012000312); 3.20–6.40 mm (ref 02012000313)
• Dimension C: 33.80 mm
• Dimension B: 12.70 mm
• Dimension H: 9.10 mm
• Installation: manual pressure; removal with screwdriver
• Locking: locking tab with additional slot for cable ties/clamps
• Edge finish: rounded edges to protect cable insulation
• Minimum service life: 20 years
• Certifications: UL, c-UL-us; DFARS compliant
• RoHS: compliant
• Operating temperature range: -40 °C to +300 °C
• Measurement units: millimeters
