Round plug ZBA
non-threadedpush-inthermoplastic

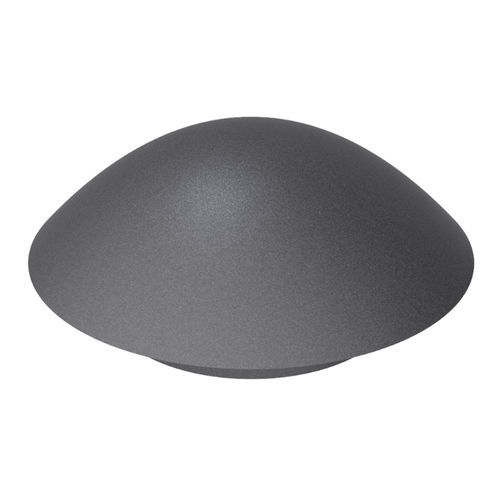

Round plug - ZBA - ISC PLASTIC PARTS - non-threaded / push-in / thermoplastic
Round plug - ZBA - ISC PLASTIC PARTS - non-threaded / push-in / thermoplastic
Add to favorites
Compare this product

Characteristics

Form
round
Type
non-threaded, push-in
Material
thermoplastic, TPE
Product applications
photovoltaic
Other characteristics
push-fit
Diameter

Max.: 34.9 mm
(1.374 in)

Min.: 12.7 mm
(0.5 in)

Operating temperature

Max.: 135 °C
(275 °F)

Min.: -60 °C
(-76 °F)

Thickness

Max.: 3.2 mm
(0.1 in)

Min.: 0.8 mm
(0 in)

Description

Product overview
The ZBA family of round-hole plugs is designed for outdoor and industrial applications requiring weather-resistant material and electrical insulation. Manufactured in TPE with 75/85 Shore A hardness, these plugs provide quick manual installation and reliable sealing.

Main characteristics
  • Suitable for panels with thickness from 0.80 to 3.20 mm.
  • Suitable for mounting hole diameters from 12.70 mm to 34.90 mm.
  • Submersible – provides sealing/tightness once installed.
  • UL certified depending on reference (UL listed or UL recognized); references with UL listing also carry NEMA 4 and 4X for water sealing and corrosion resistance.
  • Flammability classification: 94V-0.
  • Operating temperature: -60°C to 135°C.
  • Quick manual installation, no tools required.


Table - References and dimensions (measures expressed in millimeters)
Header: Reference | Hole Size (A) | Panel Thickness (G) | D | H | C
02007000300 | 12.70 | 0.80 to 3.20 | 23.10 | 11.40 | 7.40
02007000301 | 15.90 | 0.80 to 3.20 | 26.50 | 11.90 | 7.90
02007000302 | 19.10 | 0.80 to 3.20 | 29.20 | 13.00 | 8.90
02007000303 | 22.20 | 0.80 to 3.20 | 32.50 | 13.50 | 9.10
02007000304 | 25.40 | 0.80 to 3.20 | 35.80 | 14.20 | 10.20
02007000305 | 27.80 | 0.80 to 3.20 | 38.60 | 14.00 | 10.20
02007000306 | 34.90 | 0.80 to 3.20 | 45.20 | 14.30 | 10.70

Additional product notes
  • Measurements expressed in millimeters.
  • RoHS: compliant (indication provided).
  • 2D drawing and product video resources available.


Technical characteristics / specifications
  • Brand: ISC Plastic Parts
  • Family / Model: ZBA
  • Material: TPE (thermoplastic elastomer).
  • Hardness: 75/85 Shore A.
  • Panel thickness compatibility: 0.80–3.20 mm.
  • Mounting hole diameter range: 12.70–34.90 mm.
  • Sealing: submersible, provides tightness once installed.
  • Flammability: UL94 94V-0 (availability may depend on reference).
  • UL certification: UL listed or UL recognized depending on reference; UL-listed references may include NEMA 4 and 4X.
  • Operating temperature: -60°C to 135°C.
  • Installation: manual, quick, no tools required.
  • Units: millimeters.
