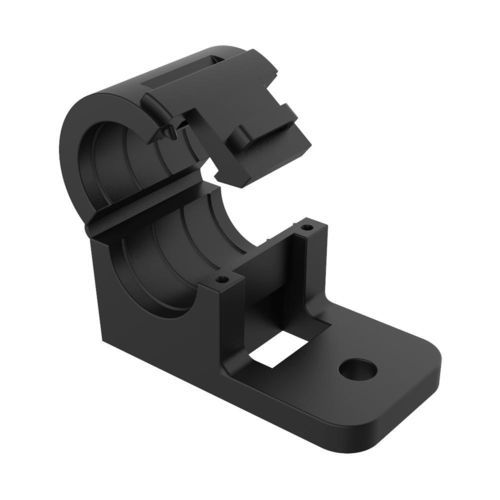

Polyamide cable clamp ZAB

nylonfor photovoltaic applicationsreusable

Description Our ZAB clamps feature a design that enables installation independent of cable position. Manufactured in Nylon (PA66), they withstand continuous temperatures up to 105º and meet the flammability classification UL94 V2. The design allows unlocking and release of the part to facilitate access and maintenance. Internal diameter ribs provide axial retention. ZAB clamps are commonly used in solar energy structures and other cable management applications.

Certifications / Compliance
UL94: V2 - V0
RoHS: compliant
IP: not specified
Measures expressed in: Millimeters

Available references and dimensions (mm)
Reference | Maximum bundle diameter (d) | A | D | E | H
02001002010 | 9,70 | 25,40 | 5,10 | 22,10 | 23,60
02001002011 | 9,70 | 25,30 | 6,70 | 22,10 | 23,60
02001002012 | 12,70 | 25,40 | 5,10 | 25,00 | 26,90
02001002013 | 12,70 | 25,40 | 6,90 | 25,00 | 26,90
02001002014 | 16,00 | 25,40 | 5,10 | 26,40 | 29,70
02001002015 | 16,00 | 25,40 | 6,90 | 26,40 | 29,70
02001002016 | 19,10 | 31,80 | 6,90 | 30,70 | 33,00
02001002017 | 19,10 | 31,80 | 8,40 | 30,70 | 33,00
02001002018 | 22,40 | 31,80 | 6,90 | 32,30 | 35,80
02001002019 | 22,40 | 31,80 | 8,40 | 32,30 | 35,80
02001002020 | 25,40 | 31,80 | 6,90 | 34,50 | 39,10
02001002021 | 25,40 | 31,80 | 8,40 | 34,50 | 39,10

Technical characteristics / specifications

• Material: Nylon (PA66)
• Maximum continuous temperature resistance: 105º (as indicated)
• Flammability rating: UL94 V2 (information indicates V2 - V0)
• RoHS: Compliant
• IP rating: Not specified
• Function: Allows unlocking and release for maintenance; ribs in internal diameter provide axial retention
• Typical applications: Solar energy structures and other cable management uses
• Dimensions units: Millimeters
• Multiple reference variants available (see table above) with respective dimensions
