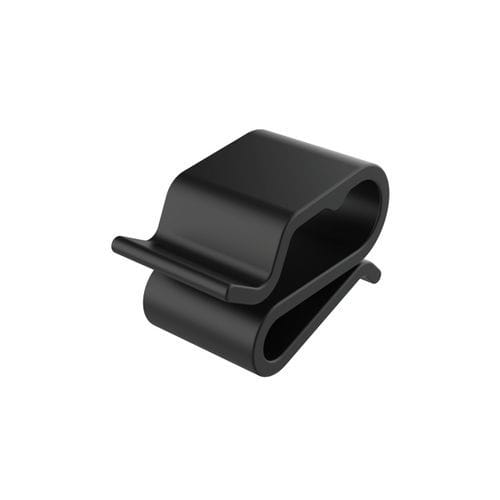

Polyamide cable clamp SFU

nylonsnap-onUV-resistant

Product description
Our SFU cable clip is designed for secure management of 1 or 2 photovoltaic cables. Its straight-through double-compression design provides firm cable retention without additional tools and allows quick installation on the panel edge.

Application and compatibility
The clip slides onto the edge of a PV solar panel and locks into any 7×10 mm or larger oval wire-management mounting hole. Measures expressed in: Millimeters.

Materials & variants

• Material: UV-rated Nylon 6/6 (F1 outdoor rated) or high‑strength Nylon 12
• Capacity: 1–2 PV wires
• Temperature range Nylon 6/6: -40°C to 105°C
• Temperature range Nylon 12: -40°C to 120°C

Compliance & additional info

• RoHS: Compliant
• UL94: Not indicated
• IP: Not indicated
• Drawing PDF: available (drawing link on page)
• Video: available demonstrating the product

Dimensions & reference
Reference: 02012000375
Cable range (d): 5.00 to 7.60 mm
Panel thickness: 1.30 to 3.10 mm
Min. depth (L): 18.30 mm
Minimum oval hole depth (l): 7.10 mm
Panel hole size: 7.00 x 10.00 mm
D x B: 23.10 x 12.70 mm
H: 9.90 mm

Technical specifications

• Reference: 02012000375
• Capacity: 1–2 PV wires
• Compatible panel hole: oval 7×10 mm or larger
• Material options: UV-rated Nylon 6/6 (F1 outdoor) or Nylon 12
• Temperature range Nylon 6/6: -40°C to 105°C
• Temperature range Nylon 12: -40°C to 120°C
• RoHS: Yes
• Measures: Millimeters
• Table dimensions (D x B): 23.10 x 12.70 mm
• Panel hole size listed: 7.00 x 10.00 mm
