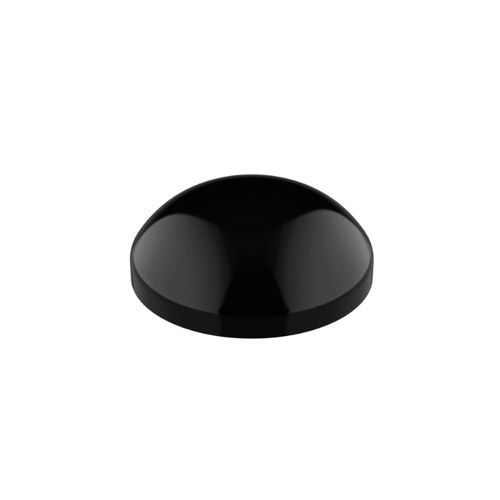

Bolt and nut cap MKPTA

Product description
MKPTA protection caps are designed to protect and conceal screw and bolt heads while providing a uniform aesthetic finish. They are intended for industrial and outdoor applications when a discreet cover and basic mechanical protection are required.

Material and performance
Manufactured from low‑density polyethylene (LDPE) with UV stabilizer to preserve material properties and colour in outdoor environments. Offers resistance to abrasion, corrosion and impact. Intended for use together with compatible polyamide (PA6) washers from the same family; select the washer reference according to the application's requirements.

Features

• Material: LDPE (low‑density polyethylene) with UV stabilizer
• Resistance: abrasion, corrosion and impact resistant
• Finishes: per reference (see technical data sheet)
• RAL colours available on request
• Reference 04801300061: metallic finish available on request, subject to minimum order quantity

Compliance / Documents / Media
Drawing PDF: available (download option shown on product page). UL94: not specified. IP rating: not specified. RoHS: compliant. Units: millimetres. Product images and demonstration video available on the product page.

References table
Reference | Suitable for screw | H | D | Cap | Washer | Type | Compatible with
04801300060 | / | 5.00 | 14.50 | Cap=yes | Washer=no | Type=/ | Compatible with:
04801300061 | / | 8.00 | 19.50 | Cap=yes | Washer=no | Type=/ | Compatible with:
04801300062 | / | 7.00 | 14.50 | Cap=yes | Washer=no | Type=/ | Compatible with:
04801300063 | M3 / M4 | 8.80 | 12.00 | Cap=no | Washer=yes | Type=2 | Compatible with: 04801300060 04801300062
04801300064 | M4 / M5 | 2.70 | 12.00 | Cap=no | Washer=yes | Type=1 | Compatible with: 04801300060 04801300062
04801300065 | M4 / M5 | 8.80 | 12.00 | Cap=no | Washer=yes | Type=2 | Compatible with: 04801300060 04801300062
04801300066 | M5 / M6 | 5.80 | 17.00 | Cap=no | Washer=yes | Type=1 | Compatible with: 04801300061
04801300067 | M5 / M6 | 13.40 | 17.00 | Cap=no | Washer=yes | Type=2 | Compatible with: 04801300061

Technical characteristics / specifications

• Family / Model: MKPTA
• Material: LDPE with UV stabilizer
• Intended use: protection and concealment of screw and bolt heads
• Compatibility: designed to be used with polyamide (PA6) washers from the same family; see compatibility table per reference
• Resistance properties: abrasion, corrosion and impact resistant
• Finishes and colours: per reference; RAL colours on request; metallic finish for 04801300061 subject to MOQ
• RoHS: compliant; UL94 / IP: not specified
• Measures unit: millimetres
• Media: product images, 2D drawings (PDF) and product video available
