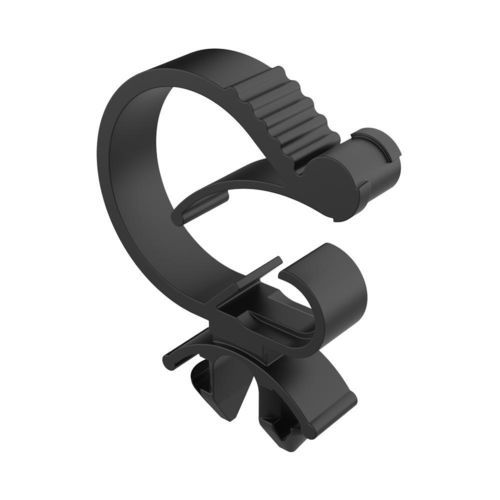

Cable guide SGD

Product description
Our solar module cable guide SGD is designed for bidirectional oval-hole mounting on photovoltaic panel frames. Its dedicated geometry prevents unintended rotation within standard oval mounting holes, ensuring stable positioning.
Its primary function is cable routing and management in straight or 90° configurations, allowing North/South or East/West layouts. Hand installation is achieved by push-through insertion and 90° rotation, providing firm friction-fit retention with high pull-out resistance.

Material and compliance

• Material: Nylon 6/6, heat and UV stabilized
• Flammability: UL 94 V-2
• Temperature range: -40°C to 115°C
• Features: Releasable, reusable, anti-twist locking system
• RoHS: compliant

Functionality
Provides secure cable retention and accommodates a wide cable diameter range.

Measurements and additional info
Measures expressed in: Millimeters. IP: not indicated.

Available variants
Reference | Cable range (d) | Panel hole size | Panel thickness | B | L | H
02012000400 | 7,40 to 11,20 | 7,00 x 10,00 | 1,40 to 4,40 | 7,90 | 28,40 | 25,40
02012000401 | 7,40 to 11,20 | 7,00 x 12,00 | 1,40 to 4,40 | 7,90 | 28,40 | 25,40
02012000402 | 7,40 to 11,20 | 9,00 x 14,00 | 1,40 to 3,70 | 7,90 | 28,40 | 25,40
02012000403 | 7,40 to 11,20 | 8,50 x 16,00 | 1,40 to 3,40 | 7,90 | 28,40 | 25,40
02012000404 | 10,40 to 17,50 | 7,00 x 10,00 | 1,40 to 4,40 | 7,90 | 31,50 | 35,60
02012000405 | 10,40 to 17,50 | 7,00 x 12,00 | 1,40 to 4,40 | 7,90 | 31,50 | 35,60
02012000406 | 10,40 to 17,50 | 9,00 x 14,00 | 1,40 to 3,70 | 7,90 | 31,50 | 35,60
02012000407 | 10,40 to 17,50 | 8,50 x 16,00 | 1,40 to 3,40 | 7,90 | 31,50 | 35,60
02012000408 | 15,20 to 22,20 | 7,00 x 10,00 | 1,40 to 4,40 | 7,90 | 42,20 | 43,90
02012000409 | 15,20 to 22,20 | 7,00 x 12,00 | 1,40 to 4,40 | 7,90 | 42,20 | 43,90
02012000410 | 15,20 to 22,20 | 9,00 x 14,00 | 1,40 to 3,70 | 7,90 | 42,20 | 43,90
02012000411 | 15,20 to 22,20 | 8,50 x 16,00 | 1,40 to 3,40 | 7,90 | 42,20 | 43,90

Documents and media
Drawing available as PDF (drawing link provided on page). Video available illustrating product and installation.

Technical specifications

• Model: SGD
• Material: Nylon 6/6, heat and UV stabilized
• Flammability: UL 94 V-2
• Temperature range: -40°C to 115°C
• Features: Releasable, reusable, anti-twist locking system
• Measures expressed in: Millimeters
• RoHS: compliant
• IP: not specified
