Plastic quarter-turn fastener SGE

for panelscamstretch-fit

Product description

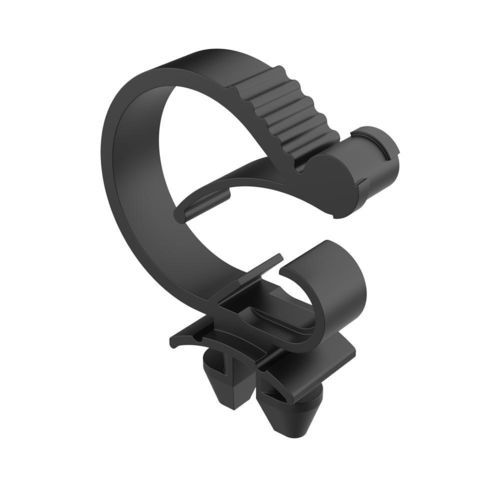

SGE quarter-turn clip clamps are cable fasteners using a 1/4-turn (90°) mounting system. The clip secures by friction inside the mounting hole and is installed manually with a quick rotation to provide stable fixing and high pull-out resistance.

Functionality

• Removable by a simple twist to allow cable routing or position adjustment
• Reusable design with an integrated locking system to prevent accidental opening or release
• Accommodates a wide range of cable diameters for varied industrial applications

Materials & Compliance

• Material: Heat and UV stabilised Nylon 6/6
• Flammability: UL 94 V-2 (page also notes UL94: V2 - V0)
• Temperature range: −40 °C to 115 °C
• RoHS: Compliant
• IP rating: Not specified

References (measures expressed in millimetres)

• 02012000420 — Cable range (d): 7.40 to 11.20 mm; Mounting slot: 6.35 to 9.50 mm; B: 7.90 mm; L: 28.40 mm; H: 26.20 mm; Type: 1
• 02012000421 — Cable range (d): 7.40 to 11.20 mm; Mounting slot: 9.50 to 12.50 mm; B: 7.90 mm; L: 28.40 mm; H: 26.20 mm; Type: 1
• 02012000422 — Cable range (d): 7.40 to 11.20 mm; Mounting slot: 12.50 to 13.00 mm; B: 7.90 mm; L: 28.40 mm; H: 26.20 mm; Type: 1
• 02012000423 — Cable range (d): 7.40 to 11.20 mm; Mounting slot: 8.00 mm; B: 7.90 mm; L: 28.40 mm; H: 25.10 mm; Type: 2
• 02012000424 — Cable range (d): 10.40 to 17.50 mm; Mounting slot: 6.35 to 9.50 mm; B: 7.90 mm; L: 31.50 mm; H: 30.00 mm; Type: 1
• 02012000425 — Cable range (d): 10.40 to 17.50 mm; Mounting slot: 9.50 to 12.50 mm; B: 7.90 mm; L: 31.50 mm; H: 30.00 mm; Type: 1
• 02012000426 — Cable range (d): 10.40 to 17.50 mm; Mounting slot: 12.50 to 13.00 mm; B: 7.90 mm; L: 31.50 mm; H: 30.00 mm; Type: 1
• 02012000427 — Cable range (d): 10.40 to 17.50 mm; Mounting slot: 8.00 mm; B: 7.90 mm; L: 31.50 mm; H: 29.50 mm; Type: 2
• 02012000428 — Cable range (d): 15.20 to 22.20 mm; Mounting slot: 6.35 to 9.50 mm; B: 7.90 mm; L: 42.20 mm; H: 38.40 mm; Type: 1
• 02012000429 — Cable range (d): 15.20 to 22.20 mm; Mounting slot: 9.50 to 12.50 mm; B: 7.90 mm; L: 42.20 mm; H: 38.40 mm; Type: 1
• 02012000430 — Cable range (d): 15.20 to 22.20 mm; Mounting slot: 12.50 to 13.00 mm; B: 7.90 mm; L: 42.20 mm; H: 38.40 mm; Type: 1
• 02012000431 — Cable range (d): 15.20 to 22.20 mm; Mounting slot: 8.00 mm; B: 7.90 mm; L: 42.20 mm; H: 37.10 mm; Type: 2

Notes
Type 1 corresponds to the "T-Type" profile (suitable for solar and industrial profiles). Type 2 corresponds to the "I-Type" profile (common aluminium profile used in industrial automation structures and solar panel mounting systems). Verify the anchor slot dimension to select the correct reference.

Technical specifications

• Material: Heat and UV stabilised Nylon 6/6
• Flammability: UL 94 V-2 (page also notes UL94: V2 - V0)
• Temperature range: −40 °C to 115 °C
• Reusable design with locking system to prevent accidental release
• Installation: manual 1/4-turn (90°) mounting system; secures by friction inside the mounting hole
• Measures expressed in millimetres
• RoHS: Compliant; IP rating: not specified
• Suitable for T-Type (Type 1) and I-Type (Type 2) aluminium profiles; verify anchor slot dimension for fit
