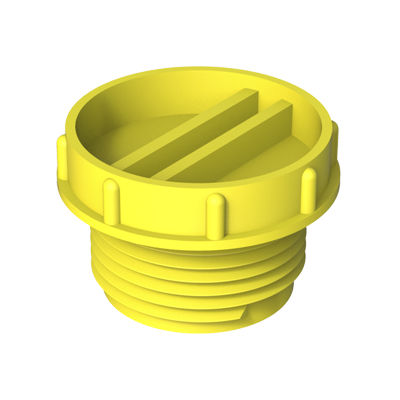

Cylindrical plug PTG

threadedlow-density polyethylene (LDPE)protection

Product description
Threaded plugs designed to protect internal threads of hydraulic and pneumatic equipment during coating processes and transport. Available in metric and GAS/BSP sizes to match common thread standards.

Technical information
Drawing PDF: available
UL94: not rated
IP: not rated
RoHS: compliant
Measures expressed in: Millimeters
Video: available

Available references
Reference | Suitable for | D | H | T | Thread (d1)
01500600314 | M12 x 1,50 | 21,00 | 9,00 | 5,00 | M
01500600315 | M14 x 1,50 | 21,00 | 9,00 | 5,00 | M
01500600316 | M16 x 1,50 | 23,00 | 10,00 | 6,00 | M
01500600317 | M18 x 1,50 | 23,00 | 10,00 | 6,00 | M
01500600318 | M20 x 1,50 | 28,00 | 12,00 | 6,00 | M
01500600319 | M22 x 1,50 | 28,00 | 12,00 | 6,00 | M
01500600320 | 1/8 in | 21,00 | 9,00 | 5,00 | GAS/BSP
01500600321 | 1/4 in | 21,00 | 9,00 | 5,00 | GAS/BSP
01500600322 | 3/8 in | 23,00 | 10,00 | 6,00 | GAS/BSP
01500600323 | 1/2 in | 28,00 | 12,00 | 6,00 | GAS/BSP

Characteristics / technical specifications

• Family: PTG
• Function: protect internal threads in hydraulic and pneumatic equipment during coating processes and transport
• Compliance: RoHS compliant
• Materials and flammability (UL94): not specified
• Ingress protection (IP): not specified
• Measurement units: millimeters
• Available thread types: Metric (M12–M22) and GAS/BSP (1/8 in–1/2 in)
• Available references and dimensions: see list above
