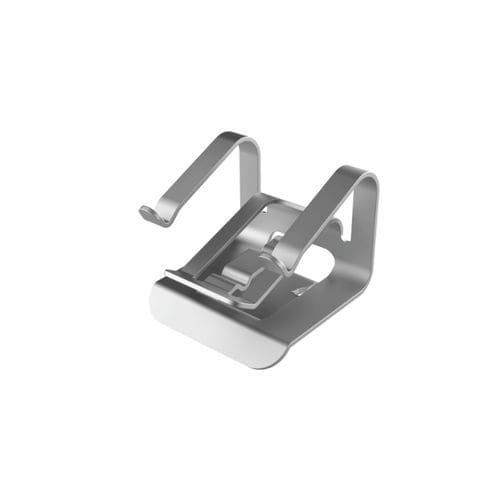

Stainless steel cable clamp SFI

snap-onreusablecorrosion-resistant

Description
The SFI panel edge clip secures and guides four homogeneous cables in a compact configuration, providing a space-saving cable management solution for industrial and renewable energy installations. Manufactured in AISI 410 stainless steel, the clip offers high mechanical strength and corrosion resistance for reliable long-term performance.

Design and application

• Reduced, compact design compared with other 4-cable versions to optimize frame space.
• Accommodates four conductors Ø 6.6–8.4 mm arranged two lower / two upper to minimize occupied area on the panel edge.
• Short locking tab designed for frames with narrow edges (10 mm), enabling integration in slim photovoltaic module frames.
• Rounded edges prevent damage to cable insulation, ensuring safe fastening over time.

Installation and maintenance

• Quick manual insertion with secure locking by the tab; no tools required for initial fitting.
• Removal or repositioning performed easily using a screwdriver.

Compliance and durability

• Material thickness: 0.635 mm, higher than common market alternatives.
• Guaranteed minimum service life: 20 years.
• Certification: c-UL-us.
• Operating temperature range: -40 °C to +300 °C.
• RoHS compliant.

Suitable for

• Photovoltaic modules
• Electrical systems and control panels
• Marine installations
• Telecommunications
• Industrial machinery
• Mobility solutions

Technical table
Reference | Cable range (d) | Panel thickness | Min. depth (L) | C | B | H
02012000314 | 6.60 to 8.40 | 0.80 to 2.00 | 10.00 | 21.80 | 22.90 | 17.80

Additional info
Drawing PDF available. Measures expressed in Millimeters. Video available demonstrating the product.

Characteristics / Technical specifications

• Model: SFI
• Reference: 02012000314
• Material: AISI 410 stainless steel
• Cable range (d): 6.6 – 8.4 mm
• Panel thickness suitability: 0.80 – 2.00 mm
• Minimum depth (L): 10.00 mm
• Dimensions: C = 21.80 mm, B = 22.90 mm, H = 17.80 mm
• Clip thickness: 0.635 mm
• Short locking tab for frames with 10 mm narrow edges
• Minimum service life: 20 years
• Certifications: c-UL-us
• Operating temperature: -40 °C to +300 °C
• RoHS: Compliant
• Typical applications: photovoltaic modules, electrical panels, marine, telecom, industrial machinery, mobility
