Cable clip SFAphotovoltaicstainless steelrouting
Add to favorites
Compare this product
Characteristics
- Product applications
- cable, photovoltaic
- Material
- stainless steel
- Function
- fixing, routing
- Other characteristics
- snap-in, strain relief
Description
Product description

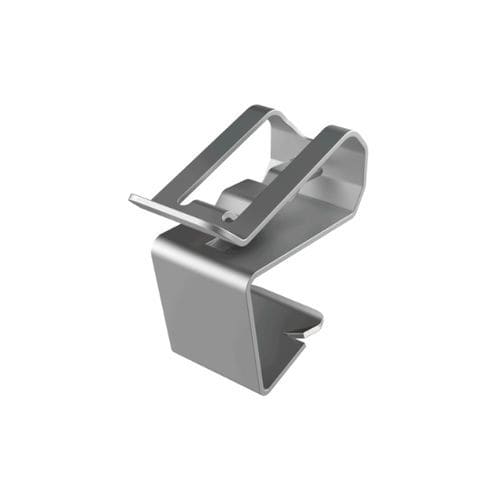

The SFA panel edge clip secures and guides two homogeneous cables, providing organized cable routing for industrial and renewable-energy applications. Manufactured in AISI 304 or AISI 316 stainless steel, the clip is suitable for corrosive or marine environments where long-term corrosion resistance is required.
Installation and handling
Installation is performed by simple manual pressure: the clip anchors to the panel edge via an integrated locking tab. Removal or repositioning requires only a screwdriver, enabling quick servicing without special tools. Rounded edges protect cable insulation during installation. Select versions include tab slots to accept cable ties or clamps for supplementary fastening.
Performance and approvals
With a material thickness of 0.635 mm, these clips exceed common market strength expectations and have a certified service life of at least 20 years. They are c-UL-us approved and comply with RoHS. Operating temperature range covers -40 °C to +300 °C, enabling use in demanding conditions. Reference 02012000300 is intended for very narrow frame edges.
References and dimensions (millimetres)
Reference | Cable range (d) | Panel thickness | Min. depth (L) | C | B | H
02012000300 | 5.10 to 7.60 | 0.64 to 2.36 | 10.00 | 24.60 | 12.70 | 9.90
02012000301 | 5.10 to 7.60 | 1.40 to 3.20 | 14.20 | 25.40 | 12.70 | 9.90
02012000302 | 5.10 to 7.60 | 2.30 to 6.40 | 14.20 | 25.40 | 12.70 | 10.40
Additional product information
The SFA panel edge clip secures and guides two homogeneous cables, providing organized cable routing for industrial and renewable-energy applications. Manufactured in AISI 304 or AISI 316 stainless steel, the clip is suitable for corrosive or marine environments where long-term corrosion resistance is required.
Installation and handling
Installation is performed by simple manual pressure: the clip anchors to the panel edge via an integrated locking tab. Removal or repositioning requires only a screwdriver, enabling quick servicing without special tools. Rounded edges protect cable insulation during installation. Select versions include tab slots to accept cable ties or clamps for supplementary fastening.
Performance and approvals
With a material thickness of 0.635 mm, these clips exceed common market strength expectations and have a certified service life of at least 20 years. They are c-UL-us approved and comply with RoHS. Operating temperature range covers -40 °C to +300 °C, enabling use in demanding conditions. Reference 02012000300 is intended for very narrow frame edges.
References and dimensions (millimetres)
Reference | Cable range (d) | Panel thickness | Min. depth (L) | C | B | H
02012000300 | 5.10 to 7.60 | 0.64 to 2.36 | 10.00 | 24.60 | 12.70 | 9.90
02012000301 | 5.10 to 7.60 | 1.40 to 3.20 | 14.20 | 25.40 | 12.70 | 9.90
02012000302 | 5.10 to 7.60 | 2.30 to 6.40 | 14.20 | 25.40 | 12.70 | 10.40
Additional product information
- Material: AISI 304 or AISI 316 stainless steel
- Thickness: 0.635 mm
- Certified service life: at least 20 years
- Approvals: c-UL-us
- Compliance: RoHS
- Operating temperature: -40 °C to +300 °C
- Measurements expressed in millimetres
- Installation: manual pressure; locking tab; screwdriver required for removal/repositioning
- Features: rounded edges to protect cable insulation; optional tab slots for cable ties/clamps
- Typical applications: photovoltaic modules, electrical systems, control panels, marine installations, industrial machinery, telecommunications equipment, mobility solutions
