Equipment foot LKR

for furniturePVplastic

Product description

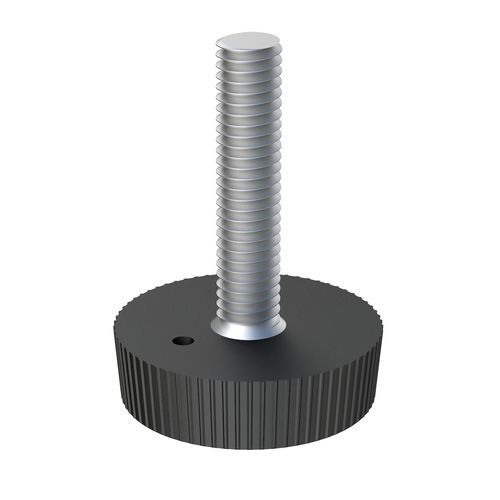

Our LKR adjustable foot features a knurled base to facilitate handling during adjustment, installation or replacement. M5 versions are manufactured in LDPE; other sizes are produced in PA6. The threaded stud is zinc-plated steel.

Materials and construction

• Base material (M5): LDPE
• Base material (other sizes): PA6
• Threaded stud: zinc-plated steel

Applications
Suitable for industrial equipment, technical furniture and shop fittings where levelling with a metric thread is required.

Available options

• Metric thread: M5, M6, M8, M10
• Base diameter: 20 to 45 mm
• Length (L): 16 to 56 mm

Certifications / Additional information
UL94: -
IP: -
RoHS: Yes
Measures expressed in: Millimeters
2D drawings (PDF) and product video: available

References / Dimensions
Reference | Metric thread (M) | L | D | H | Usable thread (l)
02500500600 | M5 | 20.00 | 20.00 | 6.00 | 17.00
02500500601 | M5 | 25.00 | 20.00 | 6.00 | 22.00
02500500602 | M5 | 30.00 | 20.00 | 6.00 | 27.00
02500500603 | M5 | 40.00 | 20.00 | 6.00 | 36.00
02500500604 | M5 | 48.00 | 20.00 | 6.00 | 47.00
00301201499 | M6 | 18.00 | 20.00 | 7.00 | 16.00
00301200430 | M6 | 18.00 | 25.00 | 7.00 | 16.00
00301200431 | M6 | 28.00 | 25.00 | 7.00 | 26.00
00301201500 | M6 | 28.00 | 20.00 | 7.00 | 26.00
00301201501 | M6 | 38.00 | 20.00 | 7.00 | 36.00
00301201502 | M6 | 47.00 | 20.00 | 7.00 | 45.00
00301201503 | M8 | 17.00 | 20.00 | 7.00 | 15.00
00301200434 | M8 | 17.00 | 25.00 | 7.00 | 15.00
00301200435 | M8 | 36.00 | 25.00 | 7.00 | 35.00
00301200436 | M8 | 47.00 | 25.00 | 7.00 | 45.00
00301200437 | M10 | 16.00 | 25.00 | 7.00 | 15.00
00301200438 | M10 | 26.00 | 25.00 | 7.00 | 24.00
00301200439 | M10 | 36.00 | 25.00 | 7.00 | 34.00
00301200440 | M10 | 46.00 | 25.00 | 7.00 | 44.00
00301200453 | M10 | 56.00 | 30.00 | 7.00 | 54.00

Technical specifications

• Model: LKR
• Knurled base for easier handling
• Materials: LDPE (M5), PA6 (other sizes)
• Threaded stud: zinc-plated steel
• Applications: industrial equipment, technical furniture, shop fittings
• Metric thread options: M5, M6, M8, M10
• Base diameter range: 20–45 mm
• Length range: 16–56 mm
• RoHS compliant
• Measurements: millimeters
