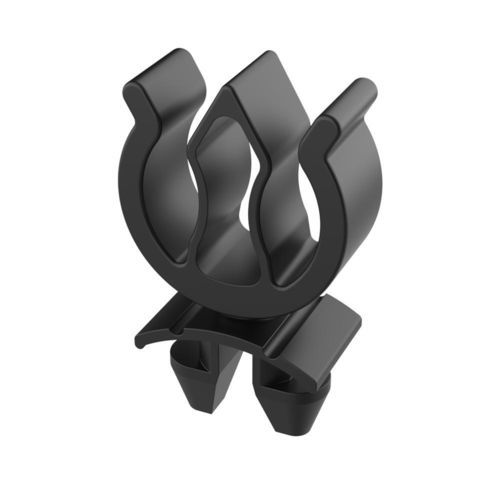

Nylon cable clamp SGF

PA6reusableUV-resistant

Description
SGF quick-fixing clips provide a simple 1/4-turn (90°) friction lock inside a profile mounting hole to secure cables. Designed for manual installation with a single twist, they deliver reliable fixing and high pull-out resistance while allowing repositioning and reuse.

Functionality

• Cables inserted by finger pressure for fast on-site wiring.
• Two cable cavities increase retention when both are used.
• Reusable: unlock with a 90° turn to remove and reposition along the profile.

Product data

• Cable capacity: up to 2 cables Ø 5.8 – 8.0 mm
• Material: heat- and UV-stabilised Nylon 6/6
• Flammability: UL 94 V-2 (see product page for V-0 options)
• Temperature range: −40 °C to 115 °C

Compliance / Additional information

• UL94: V2 - V0 (listed on product page)
• IP: none / not applicable
• RoHS: compliant
• Measures expressed in: Millimetres
• Drawing PDF: available
• Video: available

Type information
Type 1 corresponds to the "T-Type" profile, suitable for solar and industrial profiles. Type 2 corresponds to the "I-Type" profile. The I-Type profile is a common aluminium profile used in industrial automation structures, solar panel mounting systems, lightweight building beams and general industrial applications. Check the anchor slot dimension to verify which reference best fits each profile.

References table
Reference | Cable range (d) | Mounting slot | L / B | D | L1 | B1 | Type
02012000435 | 5.8 to 8.0 | 6.35 to 9.50 | 33.30 / 9.60 | 22.10 | 26.20 | 12.20 | 1
02012000436 | 5.8 to 8.0 | 9.50 to 12.50 | 36.80 / 9.60 | 22.10 | 26.20 | 12.20 | 1
02012000437 | 5.8 to 8.0 | 12.50 to 13.00 | 35.30 / 9.60 | 22.10 | 26.20 | 17.80 | 1
02012000438 | 5.8 to 8.0 | 8.00 | 36.80 / 9.60 | 22.10 | 25.70 | 12.20 | 2

Technical characteristics / specifications

• Model name: SGF
• Material: heat- and UV-stabilised Nylon 6/6
• Cable capacity: up to 2 cables Ø 5.8 – 8.0 mm
• Mounting system: 1/4-turn (90°) friction lock inside mounting hole
• Installation: manual twist; reusable by 90° unlock
• Flammability: UL 94 V-2
• Temperature range: −40 °C to 115 °C
• RoHS: compliant
• IP rating: not applicable / no IP protection indicated
• Measures unit: millimetres
• Multiple product references available (see references table for mounting slot and dimensional differences)
