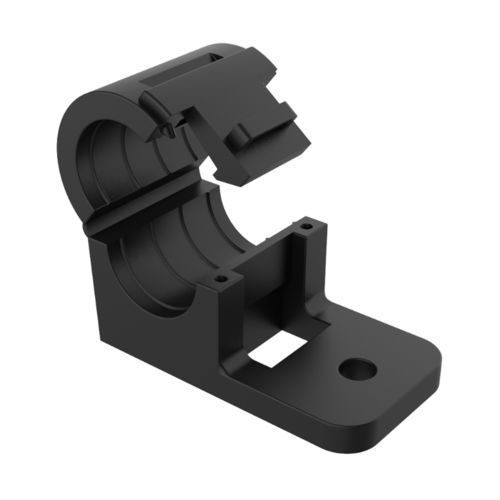

Nylon cable clamp ZAB

for photovoltaic applications

Description
Our range of ZAB cable clamps features a unique design that allows installation independent of cable placement. Manufactured in Nylon (PA66), they withstand temperatures up to 105º and meet flammability rating UL94 V2.

Functionality

• Unlocking and release mechanism for easy maintenance and repositioning.
• Internal ribs provide axial retention of the bundle.
• Installation without pre-positioning the cable simplifies assembly operations.

Applications
Commonly used in solar energy structures and in a variety of industrial cable management and fixation applications.

Certifications / Compliance / Additional info

• UL94: V2 - V0 option indicated
• RoHS: compliant
• IP rating: not specified
• Dimensions: values expressed in millimeters
• Drawing: PDF available on the product page
• Video: product video available

References and dimensions (mm)
Reference | Maximum bundle diameter (d) | A | D | E | H
02001002010 | 9,70 | 25,40 | 5,10 | 22,10 | 23,60
02001002011 | 9,70 | 25,30 | 6,70 | 22,10 | 23,60
02001002012 | 12,70 | 25,40 | 5,10 | 25,00 | 26,90
02001002013 | 12,70 | 25,40 | 6,90 | 25,00 | 26,90
02001002014 | 16,00 | 25,40 | 5,10 | 26,40 | 29,70
02001002015 | 16,00 | 25,40 | 6,90 | 26,40 | 29,70
02001002016 | 19,10 | 31,80 | 6,90 | 30,70 | 33,00
02001002017 | 19,10 | 31,80 | 8,40 | 30,70 | 33,00
02001002018 | 22,40 | 31,80 | 6,90 | 32,30 | 35,80
02001002019 | 22,40 | 31,80 | 8,40 | 32,30 | 35,80
02001002020 | 25,40 | 31,80 | 6,90 | 34,50 | 39,10
02001002021 | 25,40 | 31,80 | 8,40 | 34,50 | 39,10

Characteristics / Technical specifications

• Brand: ISC Plastic Parts
• Model: ZAB
• Material: Nylon (PA66)
• Maximum working temperature: 105º
• Flammability rating: UL94 V2 (V0 option indicated)
• RoHS: Compliant
• IP rating: Not specified
• Design features: unlocking and release mechanism for maintenance; internal ribs for axial retention
• Typical applications: solar energy structures and general cable fastening/protection
• Dimensions: see references table (mm)
• Product media: 2D drawings (PDF) and product video available
