Machine foot LHVB

PVzinc-coated steelleveling

Product description

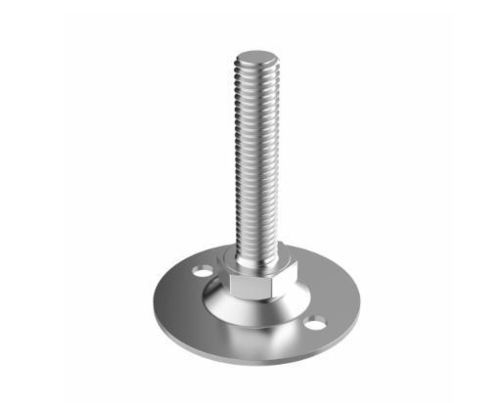

The LHVB tilting leveling feet are manufactured in Zinc Coated Steel (ZCS) and incorporate a DIN 558-4.6-A2F swivel screw with a hexagonal base. Tilt range is 10°–13° depending on the reference. The base is locked to the screw by a Torx T20 locking screw (max torque 3.4 Nm). Base options: plain base or base with two holes for floor fixing (references ending in H). Approx. maximum load per foot: 6380 N; a safety margin is recommended. Levelers must be adjusted without load and are intended for static applications (not as gliders).

Protection and accessories
If surface protection is required, a protective cap LKB made of LDPE is available for base diameters 30 mm, 45 mm and 60 mm. Standard colors: black and natural.

Special configurations available

• Other lengths and thread sizes on request
• Base in Stainless Steel (SS)
• Hexagonal recess for Allen key on the top of the thread

Compliance / Ratings
UL94: none indicated
IP: none indicated
RoHS: compliant
Measures expressed in: millimeters

Video
Product video available.

Available references (selection)
Reference | Metric thread (M) | L (mm) | D (mm) | H (mm) | Type | Max load (N)
00301201108 | M8 | 16.00 | 30.00 | 11.00–13.00 | 1 | 6380
00301201365 | M8 | 16.00 | 60.00 | 11.00–13.00 | 1 | 6380
00301201115 | M10 | 16.00 | 30.00 | 11.50–15.00 | 1 | 6380
00301201372 | M10 | 16.00 | 60.00 | 11.50–15.00 | 1 | 6380
...Full range of references and sizes available on the product page.

Technical specifications

• Material: Zinc Coated Steel (ZCS) for body
• Screw: DIN 558-4.6-A2F swivel screw with hexagonal base
• Tilt range: 10°–13° depending on reference (some M10 variants 11.50–15.00 mm shown)
• Locking screw: Torx T20 (max torque 3.4 Nm)
• Base options: plain base or base with two holes for floor fixing (references ending in H)
• Approx. max load per foot: 6380 N (safety margin recommended)
• Adjustment: levelers must be adjusted without load
• Intended use: static elements (not gliders)
• Protective cap: LKB in LDPE for diameters 30 / 45 / 60 mm (colors: black, natural)
• Special configurations: other lengths/thread sizes, SS base, hex recess for Allen key
• RoHS: compliant; UL94/IP: not indicated
• Dimensions unit: millimeters
