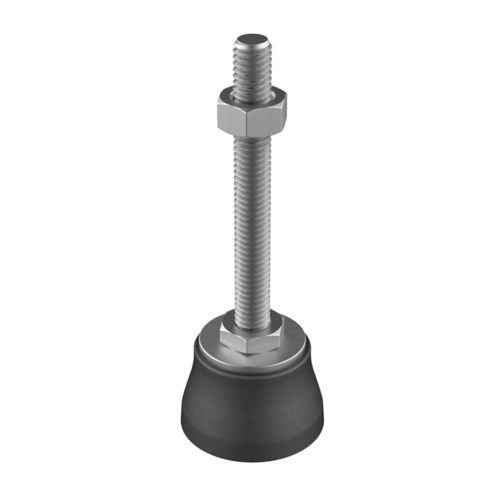

Equipment foot JTPZPVrubberpolyamide
Add to favorites
Compare this product
Characteristics
- Applications
- equipment, PV
- Material
- rubber, polyamide, stainless steel
- Type
- leveling, anti-slip
- Other characteristics
- threaded, fixed, for heavy loads
- Load capacity
Min.: 362.1 kg
(798.3 lb)Max.: 781 kg
(1,721.8 lb)- Diameter
Min.: 20 mm
(1 in)Max.: 50 mm
(2 in)
Description
Overview
Fixed heavy‑duty leveling feet JTPZ feature a reinforced base made of glass‑filled polyamide 6 (PA6) and support loads up to 7.659 N depending on the reference. They are designed for industrial applications where a quality finish and consistent mechanical properties are required. An EPDM anti‑slip pad is available as an option.
Materials & variants
Adjustment
Levelers with a rod length (L) equal to or greater than 71 mm are supplied with an adjustment nut.
Certifications & compliance
Measurements & documents
Measures expressed in: Millimeters. 2D drawings (PDF) available via site; product images, renders and demonstration video available.
References table
Reference | Metric Thread (M) | L | D | H | Maximum load (N)
01200100080 | M6 | 14,50 | 20,00 | 15,00 | 3550
01200100085 | M6 | 12,00 | 25,00 | 15,00 | 4530
01200100090 | M6 | 12,00 | 30,00 | 15,00 | 4491
01200100097 | M6 | 12,00 | 35,00 | 17,00 | 6100
01200101300 | M6 | 12,00 | 40,00 | 18,00 | 7659
01200101311 | M6 | 12,00 | 50,00 | 19,00 | 4423
01200100081 | M6 | 47,00 | 20,00 | 15,00 | 3550
01200100086 | M6 | 47,00 | 25,00 | 15,00 | 4530
01200100091 | M6 | 47,00 | 30,00 | 15,00 | 4491
01200100098 | M6 | 47,00 | 35,00 | 17,00 | 6100
01200101301 | M6 | 47,00 | 40,00 | 18,00 | 7659
01200101312 | M6 | 47,00 | 50,00 | 19,00 | 4423
01200100084 | M8 | 21,00 | 20,00 | 15,00 | 3550
01200100089 | M8 | 21,00 | 25,00 | 15,00 | 4530
01200100092 | M8 | 21,00 | 30,00 | 15,00 | 4491
01200100099 | M8 | 21,00 | 35,00 | 17,00 | 6100
01200101302 | M8 | 21,00 | 40,00 | 18,00 | 7659
01200101313 | M8 | 21,00 | 50,00 | 19,00 | 4423
01200100082 | M8 | 46,00 | 20,00 | 15,00 | 3550
01200100087 | M8 | 46,00 | 25,00 | 15,00 | 4530
01200100093 | M8 | 46,00 | 30,00 | 15,00 | 4491
01200100100 | M8 | 46,00 | 35,00 | 17,00 | 6100
01200101303 | M8 | 46,00 | 40,00 | 18,00 | 7659
01200101314 | M8 | 46,00 | 50,00 | 19,00 | 4423
01200100083 | M8 | 86,00 | 20,00 | 15,00 | 3550
01200100088 | M8 | 86,00 | 25,00 | 15,00 | 4530
01200100094 | M8 | 86,00 | 30,00 | 15,00 | 4491
01200100101 | M8 | 86,00 | 35,00 | 17,00 | 6100
01200101304 | M8 | 86,00 | 40,00 | 18,00 | 7659
01200101315 | M8 | 86,00 | 50,00 | 19,00 | 4423
01200100095 | M10 | 46,00 | 30,00 | 15,00 | 4491
01200100102 | M10 | 46,00 | 35,00 | 17,00 | 6100
01200101305 | M10 | 46,00 | 40,00 | 18,00 | 7659
01200101316 | M10 | 46,00 | 50,00 | 19,00 | 4423
01200100096 | M10 | 86,00 | 30,00 | 15,00 | 4491
01200100103 | M10 | 86,00 | 35,00 | 17,00 | 6100
01200101306 | M10 | 86,00 | 40,00 | 18,00 | 7659
01200101317 | M10 | 86,00 | 50,00 | 19,00 | 4423
01200100104 | M12 | 43,00 | 35,00 | 17,00 | 6100
01200101307 | M12 | 43,00 | 40,00 | 18,00 | 7659
01200101318 | M12 | 43,00 | 50,00 | 19,00 | 4423
01200100105 | M12 | 83,00 | 35,00 | 17,00 | 6100
01200101308 | M12 | 83,00 | 40,00 | 18,00 | 7659
01200101319 | M12 | 83,00 | 50,00 | 19,00 | 4423
01200101309 | M14 | 83,00 | 40,00 | 18,00 | 7659
01200101320 | M14 | 83,00 | 50,00 | 19,00 | 4423
01200101310 | M14 | 133,00 | 40,00 | 18,00 | 7659
Notes
Video available for product demonstration. Drawing (2D) available from site references (download mechanism triggered on site).
Fixed heavy‑duty leveling feet JTPZ feature a reinforced base made of glass‑filled polyamide 6 (PA6) and support loads up to 7.659 N depending on the reference. They are designed for industrial applications where a quality finish and consistent mechanical properties are required. An EPDM anti‑slip pad is available as an option.
Materials & variants
- Base material: glass‑filled polyamide 6 (reinforced PA6)
- Optional anti‑slip base: EPDM
- Standard thread: stainless steel type 304; type 316 available on minimum order
- Manufacturer: ISC Plastic Parts
Adjustment
Levelers with a rod length (L) equal to or greater than 71 mm are supplied with an adjustment nut.
Certifications & compliance
- RoHS: Compliant (indicated on datasheet)
- UL94: Not specified
- IP: Not specified
Measurements & documents
Measures expressed in: Millimeters. 2D drawings (PDF) available via site; product images, renders and demonstration video available.
References table
Reference | Metric Thread (M) | L | D | H | Maximum load (N)
01200100080 | M6 | 14,50 | 20,00 | 15,00 | 3550
01200100085 | M6 | 12,00 | 25,00 | 15,00 | 4530
01200100090 | M6 | 12,00 | 30,00 | 15,00 | 4491
01200100097 | M6 | 12,00 | 35,00 | 17,00 | 6100
01200101300 | M6 | 12,00 | 40,00 | 18,00 | 7659
01200101311 | M6 | 12,00 | 50,00 | 19,00 | 4423
01200100081 | M6 | 47,00 | 20,00 | 15,00 | 3550
01200100086 | M6 | 47,00 | 25,00 | 15,00 | 4530
01200100091 | M6 | 47,00 | 30,00 | 15,00 | 4491
01200100098 | M6 | 47,00 | 35,00 | 17,00 | 6100
01200101301 | M6 | 47,00 | 40,00 | 18,00 | 7659
01200101312 | M6 | 47,00 | 50,00 | 19,00 | 4423
01200100084 | M8 | 21,00 | 20,00 | 15,00 | 3550
01200100089 | M8 | 21,00 | 25,00 | 15,00 | 4530
01200100092 | M8 | 21,00 | 30,00 | 15,00 | 4491
01200100099 | M8 | 21,00 | 35,00 | 17,00 | 6100
01200101302 | M8 | 21,00 | 40,00 | 18,00 | 7659
01200101313 | M8 | 21,00 | 50,00 | 19,00 | 4423
01200100082 | M8 | 46,00 | 20,00 | 15,00 | 3550
01200100087 | M8 | 46,00 | 25,00 | 15,00 | 4530
01200100093 | M8 | 46,00 | 30,00 | 15,00 | 4491
01200100100 | M8 | 46,00 | 35,00 | 17,00 | 6100
01200101303 | M8 | 46,00 | 40,00 | 18,00 | 7659
01200101314 | M8 | 46,00 | 50,00 | 19,00 | 4423
01200100083 | M8 | 86,00 | 20,00 | 15,00 | 3550
01200100088 | M8 | 86,00 | 25,00 | 15,00 | 4530
01200100094 | M8 | 86,00 | 30,00 | 15,00 | 4491
01200100101 | M8 | 86,00 | 35,00 | 17,00 | 6100
01200101304 | M8 | 86,00 | 40,00 | 18,00 | 7659
01200101315 | M8 | 86,00 | 50,00 | 19,00 | 4423
01200100095 | M10 | 46,00 | 30,00 | 15,00 | 4491
01200100102 | M10 | 46,00 | 35,00 | 17,00 | 6100
01200101305 | M10 | 46,00 | 40,00 | 18,00 | 7659
01200101316 | M10 | 46,00 | 50,00 | 19,00 | 4423
01200100096 | M10 | 86,00 | 30,00 | 15,00 | 4491
01200100103 | M10 | 86,00 | 35,00 | 17,00 | 6100
01200101306 | M10 | 86,00 | 40,00 | 18,00 | 7659
01200101317 | M10 | 86,00 | 50,00 | 19,00 | 4423
01200100104 | M12 | 43,00 | 35,00 | 17,00 | 6100
01200101307 | M12 | 43,00 | 40,00 | 18,00 | 7659
01200101318 | M12 | 43,00 | 50,00 | 19,00 | 4423
01200100105 | M12 | 83,00 | 35,00 | 17,00 | 6100
01200101308 | M12 | 83,00 | 40,00 | 18,00 | 7659
01200101319 | M12 | 83,00 | 50,00 | 19,00 | 4423
01200101309 | M14 | 83,00 | 40,00 | 18,00 | 7659
01200101320 | M14 | 83,00 | 50,00 | 19,00 | 4423
01200101310 | M14 | 133,00 | 40,00 | 18,00 | 7659
Notes
Video available for product demonstration. Drawing (2D) available from site references (download mechanism triggered on site).
