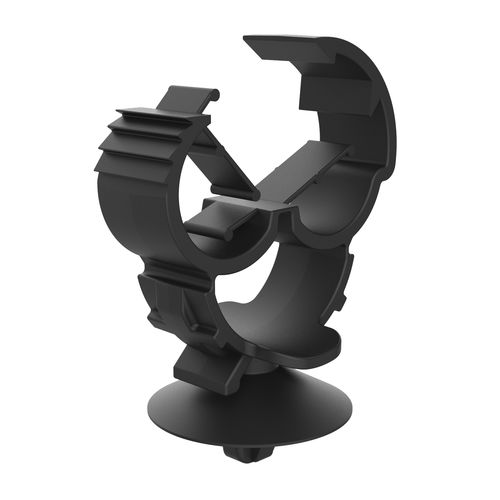

Plastic cable clamp WAC

for photovoltaic applications

Product overview
Our clip clamps for cables or tubes with universal anchorage are designed to be inserted and fixed into a panel or sheet hole. They feature an innovative self-closing mechanism that allows positioning of cables and, under applied pressure, closes automatically to center and secure the cables, reducing installation time. They accommodate a wide range of tube/cable diameters.

Standards and compliance
UL94: Not available
IP: Not available
RoHS: Compliant
Measures expressed in: Millimeters

Table: References and dimensions (Measurements in Millimeters)
Header: Reference | Panel Hole Size | Panel Thickness | Tube Diameter | B | C | H | A | H1 | More Info
02800120001 | 6,35 to 6,70 | 0,50 to 2,00 | 6 to 12 | 24,00 | 18,00 | 37,10 | 6,70 | 13,00 to 20,00 |
02800120002 | 6,35 to 6,70 | 0,50 to 3,00 | 11 to 18 | 32,00 | 20,00 | 48,50 | 6,70 | 21,00 to 27,00 |
02800120003 | 6,70 | 0,70 to 3,00 | 3 to 16 | 22,60 | 10,00 | 44,60 | 5,70 | _ |
02800120004 | 6,30 to 6,70 | 0,70 to 3,00 | 17 to 24 | 33,00 | 21,00 | 52,00 | 7,20 | 21,00 to 28,00 |

Media
Drawing (2D) available (PDF download action present on page).
Product video available.

Characteristics / Technical specifications

• Model: WAC
• Type: Clip / clamp with universal anchor for panel/sheet insertion
• Anchorage: Universal anchorage suitable for insertion and fixation inside panel/sheet holes
• Operation: Self-closing system—positions cables and closes automatically under pressure
• Installation benefit: Time saving on installation due to self-closing design
• Compatibility: Suitable for a wide variety of tube/cable diameters (see table for reference-specific tube diameters)
• Standards: RoHS compliant; UL94 and IP not available/not specified
• Measurements unit: Millimeters
• Available references and main dimensions: see table above (02800120001, 02800120002, 02800120003, 02800120004)
• Brand: ISC Plastic Parts
