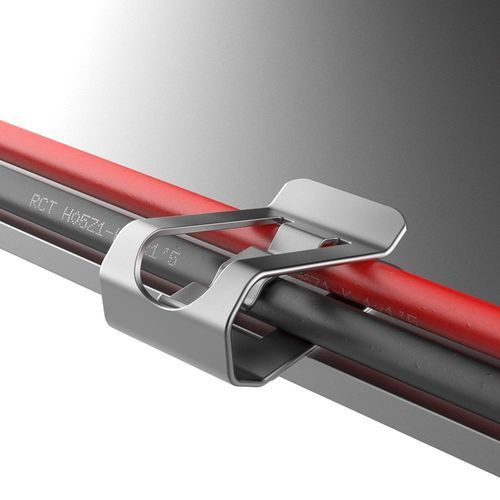

Stainless steel cable clamp SFC

corrosion-resistantfor photovoltaic applications

Description
The SFC inside panel edge clip is designed to fasten and guide two homogeneous cables oriented toward the interior of the frame, enabling a discreet, integrated installation. Manufactured in AISI 304 stainless steel, it provides high mechanical strength and corrosion resistance for long-term use in demanding environments. Assembly is quick and achieved by manual pressure; the short locking tab secures the clip firmly. Removal or repositioning is possible with a screwdriver, facilitating maintenance without special tools. Rounded edges protect cable insulation, preventing cuts or damage. With a thickness of 0.635 mm this clip exceeds standard market requirements and guarantees a certified minimum service life of 20 years, maintaining reliability under extreme conditions from -40 °C to +300 °C. Its internal routing makes it ideal for photovoltaic modules requiring hidden cable runs, as well as electrical installations, control systems, telecommunications, control panels, industrial machinery and marine environments where safe, neat and durable cable management is required.

Standards and compliance
UL94: Not specified
IP: Not specified
RoHS: Compliant
Measurements expressed in: Millimeters
Drawing PDF: Available (download via product page)
Video: Available (product video on page)

Product references and dimensions (table)
Reference | Cable range (d) | Panel thickness | C | B | H
02012000305 | 5.10 to 8.30 | 1.40 to 3.20 | 25.40 | 12.70 | 9.90

Technical characteristics / specifications

• Material: AISI 304 stainless steel
• Clip thickness: 0.635 mm
• Certified minimum service life: 20 years
• Operating temperature range: -40 °C to +300 °C
• Assembly: Manual pressure; locked by short locking tab
• Removal/repositioning: Possible with a screwdriver (no special tools required)
• Rounded edges to protect cable insulation
• Typical applications: Photovoltaic modules, electrical installations, control systems, telecommunications, control panels, industrial machinery, marine environments
• RoHS: Compliant
• UL94: Not specified
• IP protection: Not specified
• Measurements unit: Millimeters
