Photovoltaic clip SFK

stainless steelfixingpush-in

Product description

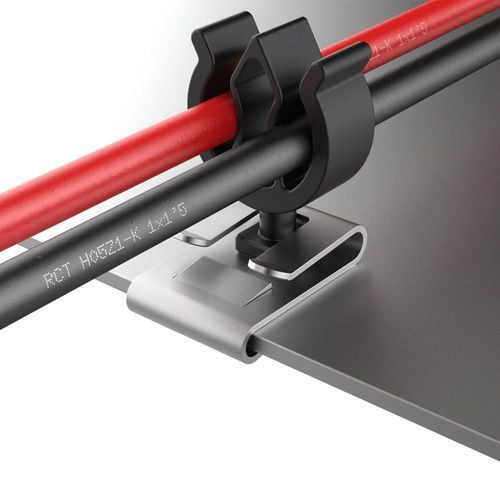

The SFK panel edge clip is designed to be assembled with modular cable clamps, providing a secure mechanical fixing for single or bundled cables on panel frames and narrow edges in industrial and energy installations. Manufactured from AISI 304 stainless steel, the clip delivers high corrosion resistance and mechanical strength for demanding environments.

Installation is performed by manual pressure: the clip locks onto the frame using a locking tab. Removal or repositioning requires a screwdriver, enabling fast on-site maintenance without special tools. A short tab version accommodates very narrow frame edges.

With a thickness of 0.635 mm, the SFK clip exceeds common market thicknesses to extend service life and ensure stable performance across a temperature range of -40 °C to +300 °C. Use with a compatible modular clamp to complete the cable-fixing assembly.

Applications

• Photovoltaic modules
• Electrical panels
• Telecommunications
• Industrial machinery
• Marine installations
• Control systems

Certifications / Standards
UL94: not rated | IP: not rated | RoHS: compliant

Reference table
Reference | Panel thickness (mm) | C | B | L
02012000319 | 0.80 to 2.10 | 17.50 | 12.70 | 7.60

Technical specifications

• Model: SFK
• Material: AISI 304 stainless steel
• Thickness: 0.635 mm
• Temperature range: -40 °C to +300 °C
• Installation: manual pressure; locking tab
• Removal/repositioning: screwdriver required
• Short tab for narrow frame edges
• RoHS: compliant
• Dimensions expressed in: millimeters
