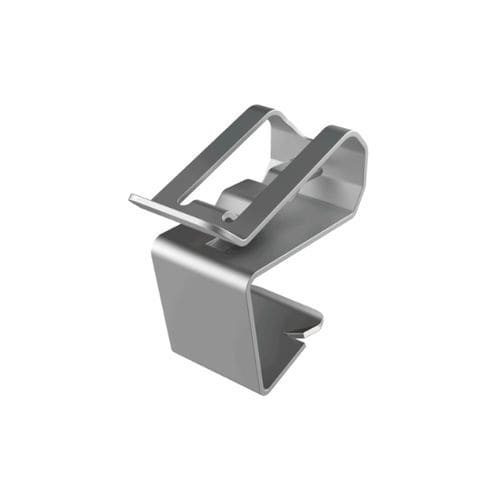

Cable clip SFE

photovoltaicstainless steelrouting

Product description

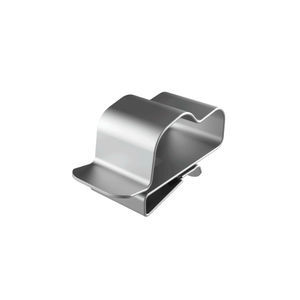

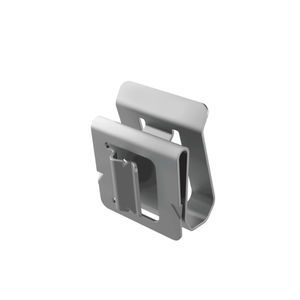

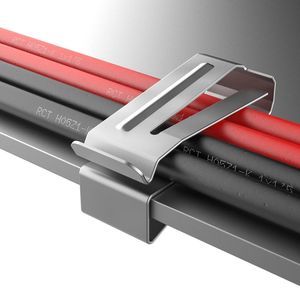

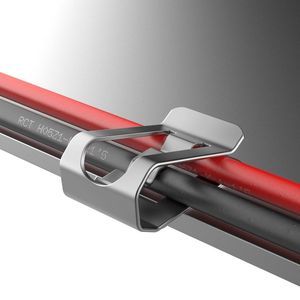

The SFE panel edge clip secures and guides two homogeneous cables for industrial and renewable-energy installations. Manufactured in AISI 304 stainless steel with a thickness of 0.635 mm, it offers high mechanical strength and corrosion resistance for prolonged service life. Designed for frameless photovoltaic modules, the clip mounts directly onto the panel edge by manual pressure and locks with an integrated tab. Removal or repositioning requires only a screwdriver. Rounded edges protect cable insulation while the clip geometry ensures stable anchorage. Rated for operation from -40 °C to +300 °C and a minimum service life of 20 years, the SFE meets demanding environmental conditions.

Applications

• Frameless photovoltaic modules
• Electrical distribution systems
• Marine installations
• Telecommunications equipment
• Industrial machinery
• Control panels

Compliance and documents

• RoHS: compliant
• UL94: not specified
• IP: not specified
• Measures expressed in: Millimeters
• Drawing: available (2D)
• Video: available

References and dimensions
Reference | Cable range (d) | Panel width range (C) | Max. panel thickness (T) | Min. depth (L) | C | B | H | h
02012000307 | 5,10 to 8,40 | 13,00 to 15,30 | 2,30 | 19,60 | 24,60 | 12,70 | 25,60 | 10,40
02012000308 | 5,10 to 8,40 | 15,30 to 16,80 | 2,30 | 19,60 | 24,60 | 12,70 | 27,60 | 10,40
02012000309 | 5,10 to 8,40 | 16,80 to 18,00 | 2,30 | 19,60 | 24,60 | 12,70 | 29,50 | 10,40

Characteristics / technical specifications

• Model: SFE
• Material: AISI 304 stainless steel
• Designed to hold two homogeneous cables
• Installation: manual pressure; locking tab; removable with a screwdriver
• Thickness: 0.635 mm
• Minimum service life: 20 years
• Operating temperature: -40 °C to +300 °C
• RoHS: compliant
• Measures in: Millimeters
• Available references: 02012000307, 02012000308, 02012000309
