Nylon hose clamp MAEC

polyamidescrewPV

Product overview

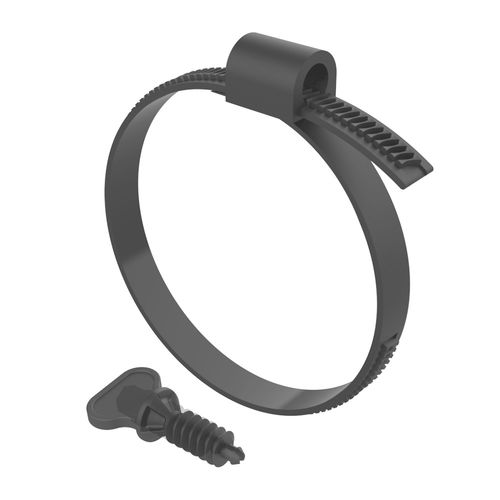

MAEC non-metallic hose clamp manufactured in PA66 (Nylon 66) and PA12 (Nylon 12). Designed for specialized industrial applications where corrosion resistance and UV/weather resistance are required. Standard colour: black; other colours available on minimum order.

Applications

• Specialized telecommunications (e.g. 5G infrastructure)
• Submarine and marine installations
• Other industrial uses requiring non-metallic clamping

Design & materials
The clamp uses an endless screw fixed to the head; installation can be performed manually or with a tool (8 mm hexagon depending on type). The design minimises leak path and forms an almost perfect circle when tightened. Fixed band width: 12.7 mm.

Sizes and variants (table)
Reference | Cable Range (d) | A | B
04401200050 | 25.00 to 50.00 | 12.70 | 3.25
04401200051 | 25.00 to 75.00 | 12.70 | 3.25
04401200052 | 25.00 to 100.00 | 12.70 | 3.25
04401200053 | 50.00 to 125.00 | 12.70 | 3.25
04401200054 | 75.00 to 150.00 | 12.70 | 3.25

Compliance & markings
UL94: HB - V2 (depending on material variant). RoHS: compliant. IP: not specified. Dimensions in millimetres. Technical drawings (PDF) and video available on request.

Technical specifications

• Materials: PA66 (Nylon 66) and PA12 (Nylon 12)
• Fixed band width: 12.7 mm
• Diameter range covered: 25 mm to 150 mm (five sizes)
• Maximum tightening torque: 2.0 Nm
• Operating temperature PA66: long-term max 125°C (255°F), occasional max 150°C (302°F); UL94-V2
• Operating temperature PA12: long-term max 100°C (212°F), occasional max 120°C (248°F); UL94-HB
• Minimum tensile strength PA66: 359 lb / 163 kg / 1600 N
• Minimum tensile strength PA12: 353 lb / 160 kg / 1570 N
• Continuous load (PA66 and PA12): 20 lb / 9.1 kg / 89 N
• Installation: manual or with 8 mm hexagon tool (type dependent)
