Equipment foot MFDD

PVsteeladjustable

Product description

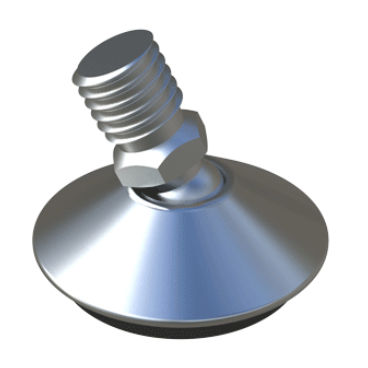

The MFDD tilting adjustable foot features a steel cover and M10 metric thread. It provides height adjustment and angular compensation up to 24º and is offered in multiple lengths and diameters for industrial applications.

Compliance and documents
Drawing PDF: downloadable from the product page. UL94: not specified. IP: not specified. RoHS: Yes. Measurements in millimeters.

Video
MP4 video available showing product details and installation.

References and dimensions
Reference | Metric Thread (M) | L | D | H | Max. Tilting degree (W)
00900101334 | M10 | 10.00 | 33.20 | 12.00 | 24º
00900101335 | M10 | 10.00 | 50.00 | 15.20 | 24º
00900101336 | M10 | 20.00 | 33.20 | 12.00 | 24º
00900101337 | M10 | 20.00 | 50.00 | 15.70 | 24º
00900101338 | M10 | 30.00 | 33.20 | 12.00 | 24º
00900101339 | M10 | 30.00 | 50.00 | 15.70 | 24º

Related families

• MNI (fixed version without movement or tilting)
• Suggested related families and inserts: LJMZ, LJMSZ, LJRS, JTPU, LJM, JTPO, LJMO, JTPOA

Characteristics / technical specifications

• Family: MFDD
• Denomination: Tilting adjustable foot with steel cover
• Cover: Steel cover
• Metric thread: M10 (all listed references)
• Available references: 00900101334, 00900101335, 00900101336, 00900101337, 00900101338, 00900101339
• Dimensions examples: L = 10.00 / 20.00 / 30.00 mm; D = 33.20 / 50.00 mm; H ≈ 12.00 / 15.20 / 15.70 mm
• Max tilting degree: 24º
• RoHS: Compliant
• UL94: Not specified
• IP: Not specified
• Unit: Millimeters
