Cylindrical plug DT

threadedpolyethyleneprotection

Product description

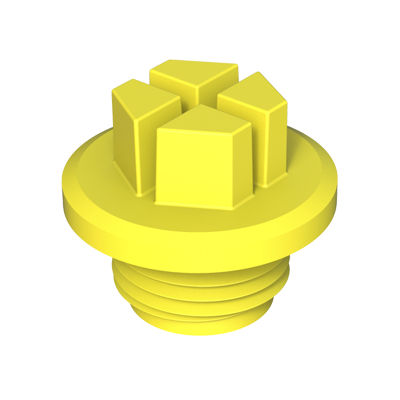

Threaded plugs designed to protect internal threads in hydraulic and pneumatic equipment during coating, finishing or transport. Suitable for metric, UN and UNF threads. Some references are supplied with an O-ring for sealing.

Technical information
Drawing PDF: available (download from product page).
UL94: -
IP: -
RoHS: Compliant
Measures expressed in: Millimeters
Video: available

References (table)
Reference | Suitable for | D | H1 | H2 | L | SW | Thread Type
01500740455 | M10 x 1 | 15,40 | 8,00 | 7,00 | 15,00 | 7 | M
01500740456 | M12 x 1,5 | 18,50 | 9,00 | 7,00 | 16,00 | 10 | M
01500740457 | M14 x 1,5 | 20,30 | 9,00 | 8,00 | 17,00 | 10 | M
01500740458 | M16 x 1,5 | 23,60 | 10,00 | 10,00 | 20,00 | 13 | M
01500740459 | M18 x 1,5 | 25,50 | 11,00 | 9,60 | 20,60 | 13 | M
01500740460 | M22 x 1,5 | 28,40 | 12,20 | 9,50 | 21,70 | 15 | M
01500740461 | M27 x 2 | 33,40 | 15,00 | 10,00 | 25,00 | 19 | M
01500740462 | M30 x 2 | 35,90 | 10,00 | 10,00 | 20,00 | 24 | M
01500740463 | M33 x 2 | 42,50 | 15,00 | 10,00 | 25,00 | 24 | M
01500740464 | M36 x 2 | 44,10 | 10,00 | 10,00 | 20,00 | 24 | M
01500740465 | M42 x 2 | 51,30 | 15,00 | 11,00 | 26,00 | 24 | M
01500740466 | M45 x 2 | 55,20 | 14,60 | 11,10 | 25,70 | 30 | M
01500740467 | M48 x 2 | 56,70 | 17,00 | 11,00 | 28,00 | 30 | M
01500740468 | M52 x 2 | 60,50 | 17,00 | 11,00 | 28,00 | 30 | M
01500740469 | 7/16 · 20 | 17,50 | 9,20 | 6,80 | 16,00 | 10 | UNF
01500740470 | 9/16 · 18 | 21,40 | 10,00 | 8,00 | 18,00 | 10 | UNF
01500740471 | 3/4 · 16 | 27,30 | 11,00 | 10,00 | 21,00 | 13 | UNF
01500740472 | 7/8 · 14 | 30,50 | 13,00 | 10,00 | 23,00 | 15 | UNF
01500740473 | 1 .1/16 · 12 | 38,20 | 15,00 | 10,00 | 25,00 | 19 | UNF
01500740474 | 1 .5/16 · 12 | 44,80 | 15,00 | 9,50 | 24,50 | 24 | UNF
01500740475 | 1 .5/8 · 16 | 56,00 | 15,00 | 11,00 | 26,00 | 30 | UNF
01500740476 | 1 .7/8 · 12 | 63,50 | 15,00 | 11,00 | 26,00 | 30 | UNF

Characteristics / Technical specifications

• Family / Series: DT
• Function: protect internal threads in hydraulic and pneumatic equipment during coating processes or transport
• Temperature resistance: up to 80°C
• RoHS: compliant
• Measurements: millimetres (dimensions listed in table)
• Available thread types: metric (M), UN and UNF
• Some references available with O-ring
• Video available showing product (no URL included in this field)
