Cable clip SFD

photovoltaicstainless steelrouting

Product overview

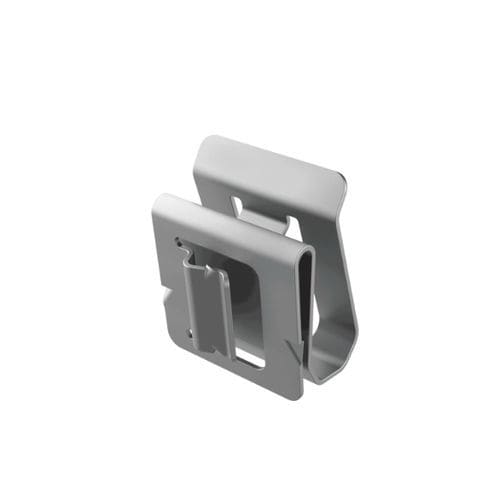

The SFD bidirectional panel edge clip is designed for the fastening and guiding of two homogeneous cables, providing a durable and reliable solution for industrial and energy applications. Manufactured in AISI 301 stainless steel, it offers mechanical strength and corrosion resistance suitable for demanding environments and elevated operating temperatures.

Design & installation
The SFD features a bidirectional design with a double locking tab enabling installation in both vertical and horizontal orientations. A short tab makes it suitable for mounting on narrow-edged frames. Installation is performed by manual pressure until the clip is firmly fixed to the panel; removal or repositioning requires a screwdriver. Rounded edges protect cable insulation during installation and in long-term service.

Durability & temperature range
Thickness: 0.635 mm, providing higher durability compared to common market alternatives and ensuring a minimum certified service life of 20 years. Operating temperature range: -40 °C to +300 °C.

Applications

• Photovoltaic modules
• Electrical installations
• Control panels
• Telecommunications
• Industrial machinery
• Transport systems
• Marine environments

Drawings, approvals & additional info
Drawing PDF: available
UL94: not applicable / not provided
IP: not applicable / not provided
RoHS: compliant
Measures expressed in: Millimeters
Video: available

References and dimensions (table)
Header: Reference | Cable range (d) | Panel thickness | C | B | H
02012000306 | 5.10 to 8.40 mm | 1.10 to 2.00 mm | C = 25.00 mm | B = 19.80 mm | H = 9.90 mm

Caractéristiques / spécifications techniques

• Model: SFD
• Brand: ISC Plastic Parts
• Function: Fastening and guiding of two homogeneous cables
• Material: AISI 301 stainless steel
• Design: Bidirectional with double locking tab (suitable for vertical and horizontal installation)
• Short tab for mounting on narrow-edged frames
• Installation: Manual pressure; removal/repositioning with screwdriver
• Rounded edges to protect cable insulation
• Thickness: 0.635 mm
• Minimum certified service life: 20 years
• Operating temperature range: -40 °C to +300 °C
• Cable range (reference 02012000306): 5.10–8.40 mm
• Panel thickness (reference 02012000306): 1.10–2.00 mm
• Dimensions (reference 02012000306): C = 25.00 mm, B = 19.80 mm, H = 9.90 mm
• Standards: RoHS compliant
