Equipment foot MFDB

PVsteeladjustable

Product overview

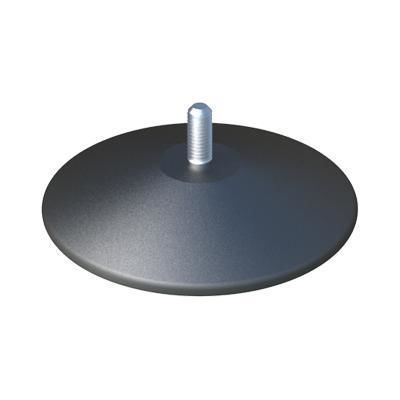

Round adjustable foot MFDB for industrial applications. Available with metric threads M8 and M10 in several diameters and heights. For the version with tilting/movement, see the tilting adjustable foot MPG.

Certifications and compliance
UL94: not specified
IP: not specified
RoHS: compliant

Measures
Measures expressed in: Millimeters

Resources
Drawing PDF: available (2D drawing / technical drawing)
Video: product video available

Variants (table)
Reference | Metric Thread (M) | L | D | H
00900101315 | M8 | 20.00 | 80.00 | 14.00
00900101316 | M8 | 20.00 | 100.00 | 18.00
00900101317 | M8 | 25.00 | 100.00 | 18.00
00900101318 | M8 | 35.00 | 60.00 | 7.00
00900101319 | M10 | 20.00 | 80.00 | 14.00
00900101320 | M10 | 20.00 | 100.00 | 18.00
00900101321 | M10 | 25.00 | 100.00 | 18.00
00900101322 | M10 | 35.00 | 60.00 | 7.00

Additional notes
The family name is MFDB; available with different metric threads and lengths as listed above. 2D drawing PDF and a product video are provided on the product page.

Technical characteristics / specifications

• Commercial name: MFDB
• Product type: Round adjustable foot
• Available references: 00900101315, 00900101316, 00900101317, 00900101318, 00900101319, 00900101320, 00900101321, 00900101322
• Threads available: M8, M10
• Dimensions listed per reference (L, D, H) expressed in mm (see table above)
• RoHS: compliant
• 2D drawings (PDF) and product video available
