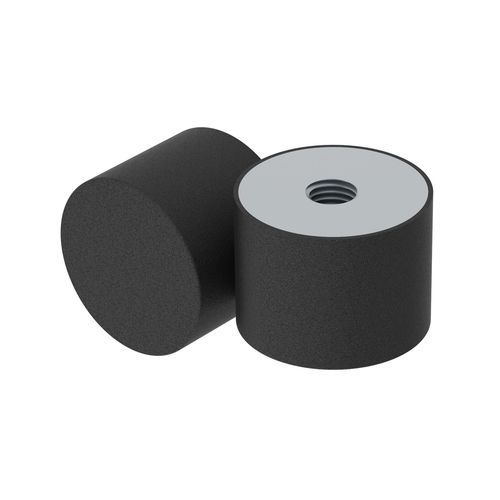

Cylindrical anti-vibration mount LSDE

galvanised steelrubberstainless steel

Product overview
Anti-vibration damper (silentblock) series LSDE designed to reduce internal vibrations of motors, fans, washing machines, pumps, hydraulic units, rotors, cylinders and to limit transmission of vibration to surrounding structures. Compact rubber-metal element supplied in multiple sizes and metric-threaded variants. Assembly is straightforward; product is intended for industrial and consumer equipment applications.

Materials and options

• Standard elastomer: NR (natural rubber), hardness 55° ± 5 Shore A.
• Other elastomer options: NBR, SBR, CR, EPDM and variable hardnesses on request.
• Standard metal part: galvanized steel (S - ST37, DIN EN 12329 - Fe // Zn12 // C).
• Optional metal: stainless steel SS - A2 (AISI 304) or other special alloys upon request.

Applications

• Soften internal vibrations of motors, fans, washing machines, hydraulic groups, pumps, rotors and cylinders.
• Minimize or cancel transmission of vibration to external equipment (sieves, vibrators, frames).
• Typical sectors: fitness equipment, household appliances, automotive, white goods, motorcycles, general machinery.

Files and compliance

• Drawing PDF: available (download from product page when provided).
• UL94: not available / not certified.
• IP rating: not provided.
• RoHS: compliant.
• Measures expressed in: millimeters.
• Video: product video available.

Variants (Reference | D | H | Metric Thread (M))
00200500001 | 8,00 | 8,00 | M3
00200500002 | 10,00 | 10,00 | M4
00200500688 | 10,00 | 10,00 | M5
00200500003 | 10,00 | 15,00 | M4
00200500004 | 12,00 | 10,00 | M5
00200500005 | 15,00 | 8,00 | M4
00200500006 | 15,00 | 10,00 | M4
00200500008 | 15,00 | 15,00 | M4
00200500009 | 15,00 | 20,00 | M4
00200500011 | 20,00 | 10,00 | M6
00200500012 | 20,00 | 15,00 | M5
00200500013 | 20,00 | 15,00 | M6
00200500014 | 20,00 | 20,00 | M6
00200500015 | 20,00 | 25,00 | M6
00200500010 | 20,00 | 30,00 | M4
00200500016 | 25,00 | 10,00 | M6
00200500017 | 25,00 | 15,00 | M6
00200500019 | 25,00 | 17,00 | M6
00200500020 | 25,00 | 20,00 | M6
00200500021 | 25,00 | 25,00 | M6
00200500022 | 25,00 | 30,00 | M6
00200500023 | 30,00 | 15,00 | M8
00200500024 | 30,00 | 17,00 | M8
00200500025 | 30,00 | 20,00 | M8
00200500026 | 30,00 | 25,00 | M8
00200500027 | 30,00 | 30,00 | M8
00200500028 | 40,00 | 15,00 | M8
00200500029 | 40,00 | 20,00 | M8
00200500030 | 40,00 | 25,00 | M8
00200500031 | 40,00 | 30,00 | M8
00200500032 | 40,00 | 40,00 | M8
00200500033 | 50,00 | 20,00 | M10
00200500034 | 50,00 | 30,00 | M10
00200500035 | 50,00 | 40,00 | M8
00200500036 | 50,00 | 40,00 | M10
00200500037 | 50,00 | 45,00 | M10
00200500038 | 50,00 | 50,00 | M10
00200500039 | 70,00 | 45,00 | M12
00200500040 | 75,00 | 25,00 | M12
00200500042 | 75,00 | 30,00 | M12
00200500043 | 75,00 | 40,00 | M12
00200500044 | 75,00 | 50,00 | M12
00200500046 | 80,00 | 80,00 | M12
00200500047 | 100,00 | 40,00 | M16
00200500049 | 100,00 | 55,00 | M16
00200500050 | 100,00 | 75,00 | M16
00200500052 | 100,00 | 100,00 | M16
00200500053 | 150,00 | 40,00 | M20
00200500054 | 150,00 | 100,00 | M20
00200500055 | 200,00 | 100,00 | M20

Technical specifications

• Series / model: LSDE.
• Function: vibration damping and isolation for machines and equipment.
• Standard elastomer: NR (natural rubber), hardness 55° ± 5 Shore A; alternatives available: NBR, SBR, CR, EPDM.
• Metal part: standard galvanized steel ST37; optional stainless steel SS - A2 (AISI 304) or other alloys on request.
• RoHS: compliant.
• UL94: not certified / not applicable.
• IP rating: not indicated.
• Dimensions: millimeters.
• Multiple references and sizes available (see variants list).
