Stainless steel cable clamp SFJ

snap-lockcorrosion-resistantfor photovoltaic applications

Product overview

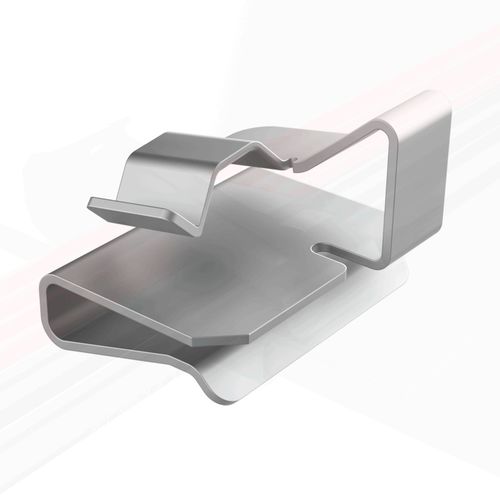

The SFJ 90° panel edge clip is designed to hold and guide cables positioned perpendicular to the photovoltaic module frame, enabling routing of conductors to the adjacent module through the short side of the frame. This arrangement provides neat, safe and efficient cabling for photovoltaic installations.

Materials & construction

• Manufactured in AISI 304 stainless steel or heat-treated AISI 410 stainless steel depending on the version.
• Excellent mechanical strength and corrosion resistance for demanding environments.
• Rounded edges to protect cable insulation.
• Some references include a short locking tab for very narrow frame edges (10 mm).
• Installed by manual pressure; locking tab secures the clip; screwdriver required for removal or repositioning.

Available configurations

• 1-cable version: AISI 304, for a single conductor; c-UL-us certified and DFARS compliant.
• 2-cable version: AISI 304, for two homogeneous conductors; reference 02012000316 includes a short locking tab. c-UL-us and DFARS certifications apply to indicated models.
• 4-cable version: heat-treated AISI 410, for four conductors fixed perpendicular to the frame. c-UL-us certified and DFARS compliant.

Certifications & compliance

• c-UL-us certification available for indicated models.
• DFARS compliance for indicated models.
• RoHS: compliant.
• UL94: not applicable / not specified.
• IP: not specified.

Table of references
Reference | Cable range (d) | No. of cables | Panel thickness | C | B | H
02012000315 | 5,10 to 8,30 | 1 | 1,40 to 3,20 | 19,80 | 16,50 | 9,90
02012000316 | 5,10 to 8,40 | 2 | 0,80 to 2,50 | 25,10 | 12,70 | 9,90
02012000317 | 5,10 to 8,30 | 2 | 0,80 to 3,20 | 24,90 | 16,50 | 9,90
02012000318 | 5,10 to 7,60 | 4 | 1,40 to 3,20 | 39,90 | 21,00 | 9,10

Additional information
Measures expressed in: Millimeters. Video available demonstrating product usage.

Technical specifications

• Model: SFJ
• Materials: AISI 304 or heat-treated AISI 410 stainless steel (version-dependent)
• Available thicknesses: 0.508 mm or 0.635 mm depending on reference
• Operating temperature range: -40 °C to +300 °C
• Certified minimum service life: 20 years
• Installation: manual pressure; locking tab provides firm fastening; screwdriver required for removal/repositioning
• Protection for cable insulation: rounded edges
• Special features: some references include a short tab for very narrow frame edges (10 mm)
• Certifications: c-UL-us (for indicated models), DFARS (for indicated models), RoHS compliant
• Units / measures: millimeters
