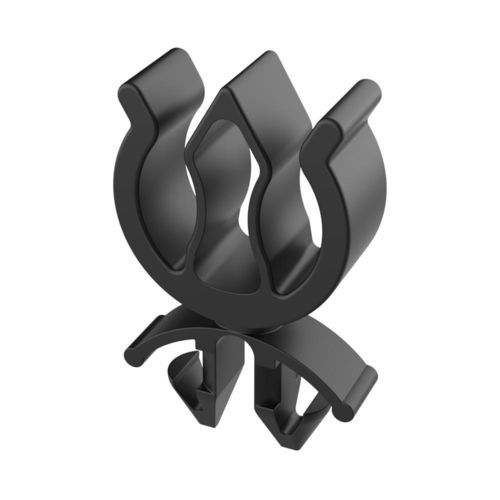

Nylon cable clamp SGB

UV-resistantroundfor photovoltaic applications

Product description
The SGB bidirectional clip for oval mounting holes secures up to two cables in solar panel frames and similar sheet-metal panels. Its asymmetric geometry prevents rotation inside the oval hole, providing reliable retention. Suitable for straight and 90° panel configurations to route cables North/South or East/West. Installation is by hand: push the clip through the oval hole and rotate 90° to obtain a friction-fit with high pull-out resistance.

Key features

• Cable capacity: up to 2 cables Ø 5.8–8.0 mm each
• Material: black heat-stable, UV-stable nylon
• Temperature range: -20°C to 85°C (dynamic)
• Installation: manual push-in for oval holes, 90° twist to lock
• Compliance: RoHS
• Video: available

Variants

• 02012000415 — Cable range: 5.8 to 8.0 mm; Panel hole: 7.00 x 10.00 mm; Panel thickness: 1.40 to 4.40 mm; L: 37.80 mm; B: 9.60 mm; C: 23.40 mm
• 02012000416 — Cable range: 5.8 to 8.0 mm; Panel hole: 7.00 x 12.00 mm; Panel thickness: 1.40 to 4.40 mm; L: 37.80 mm; B: 9.60 mm; C: 23.40 mm
• 02012000417 — Cable range: 5.8 to 8.0 mm; Panel hole: 9.00 x 14.00 mm; Panel thickness: 1.40 to 3.70 mm; L: 37.80 mm; B: 9.60 mm; C: 23.40 mm
• 02012000418 — Cable range: 5.8 to 8.0 mm; Panel hole: 8.50 x 16.00 mm; Panel thickness: 1.40 to 3.40 mm; L: 37.80 mm; B: 9.60 mm; C: 23.40 mm

Technical specifications

• Cable capacity: up to 2 cables Ø 5.8–8.0 mm each
• Material: black heat-stable, UV-stable nylon
• Temperature range: -20°C to 85°C (dynamic)
• Installation method: hand push-in for oval holes with 90° rotation to lock
• RoHS: compliant
• UL94: not specified
• IP rating: not specified
• Measures: millimeters
• Available variants: 02012000415, 02012000416, 02012000417, 02012000418
