PA6 cable gland PRPRA
IP66IP68UV-resistant

PA6 cable gland - PRPRA - ISC PLASTIC PARTS - IP66 / IP68 / UV-resistant
PA6 cable gland - PRPRA - ISC PLASTIC PARTS - IP66 / IP68 / UV-resistant
PA6 cable gland - PRPRA - ISC PLASTIC PARTS - IP66 / IP68 / UV-resistant - image - 2
Add to favorites
Compare this product

Characteristics

Material
PA6
Protection level
IP68, IP66, UV-resistant
Other characteristics
PG thread, metric, for photovoltaic modules, snap-in
Cable diameter

Max.: 28 mm
(1.1 in)

Min.: 2 mm
(0.08 in)

Clamping range

Max.: 40 mm
(1.6 in)

Min.: 12 mm
(0.5 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -20 °C
(-4 °F)

Description

Overview

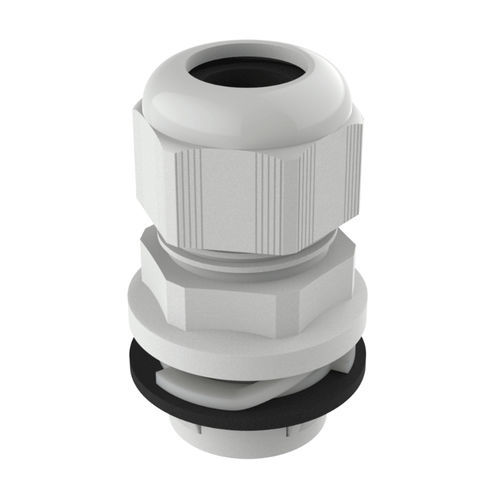

The PRPRA push-fit cable gland installs by light pressure without locknut or threaded holes, reducing assembly time versus standard cable glands.

Materials and sealing
Manufactured in Polyamide 6 (PA6). Includes a sealing O-ring in Chloroprene (CR). UV-resistant.

Performance
Sealing: IP66 / IP68; Type 4X (UL 50E).

Assembly
Panel hole range: 12 to 40 mm. Supported panel thickness: 0.50 to 4.00 mm. Available with metric or PG thread depending on reference.

Temperature range
-20 °C to +100 °C (continuous); short term: -30 °C to +150 °C.

Standards
Complies with VDE, UL, CSA, DNV; UL94 V2.

Available colours
  • Light grey RAL 7035
  • Dark grey RAL 7001
  • Black RAL 9005

Minimum order on request: blue RAL 5015, white RAL 9003 and red RAL 3020.

Accessories
  • MHPRP removal tool: special tool for disassembly of PRPRA and compatible push-fit glands; supplied in packaging and available separately. Designed for removal where rear access is restricted.
  • DTPB plug: low-density polyethylene (LDPE) push-fit plugs for temporary sealing during assembly/transport or when not in use. Operating temperature -40 °C to +60 °C. When used with a diaphragm cable gland, tightening the cap compresses the plug to improve sealing. Select D1 diameter close to the maximum cable diameter supported by the gland for correct sealing.


Downloads / Media
Drawing PDF available (2D). UL94 information: V2. IP classification: 68. RoHS: compliant. Measures expressed in millimetres. Video demonstration available for PRPRA.

Technical table
Header: Reference | Hole size | Max. panel thickness | Cable range (d) | L | D | L1 | D1 | SW
02001002026 | 12,20 to 12,40 | 0,50 to 4,00 | 2,00 to 6,50 | 38,10 | 20,90 | 9,00 | 11,90 | 15
02001002027 | 12,20 to 12,40 | 0,50 to 4,00 | 3,00 to 6,50 | 38,10 | 20,90 | 9,00 | 11,90 | 15
02001002028 | 16,20 to 16,40 | 0,50 to 4,00 | 3,00 to 6,50 | 39,10 | 23,90 | 9,20 | 15,00 | 19
02001002029 | 16,20 to 16,40 | 0,50 to 4,00 | 4,00 to 8,00 | 39,10 | 23,90 | 9,20 | 15,00 | 19
02001002030 | 16,20 to 16,40 | 0,50 to 4,00 | 3,00 to 10,00 | 44,50 | 26,50 | 9,00 | 15,90 | 22
02001002031 | 16,20 to 16,40 | 0,50 to 4,00 | 5,00 to 10,00 | 44,50 | 26,50 | 9,00 | 15,90 | 22
02001002032 | 20,20 to 20,40 | 0,50 to 4,00 | 3,00 to 13,00 | 43,50 | 30,30 | 9,00 | 19,90 | 25
02001002033 | 20,20 to 20,40 | 0,50 to 4,00 | 5,00 to 12,00 | 43,50 | 30,30 | 9,00 | 19,90 | 24
02001002034 | 20,20 to 20,40 | 0,50 to 4,00 | 6,00 to 12,00 | 43,50 | 30,30 | 9,00 | 19,90 | 24
02001002035 | 20,20 to 20,40 | 0,50 to 4,00 | 7,00 to 13,00 | 43,50 | 30,30 | 9,00 | 19,90 | 25
02001002036 | 25,20 to 25,40 | 0,50 to 4,00 | 8,00 to 17,00 | 45,50 | 36,30 | 9,00 | 24,90 | 29
02001002037 | 25,20 to 25,40 | 0,50 to 4,00 | 11,00 to 17,00 | 45,50 | 36,30 | 9,00 | 24,90 | 29
02001002038 | 32,20 to 32,40 | 0,50 to 4,00 | 11,00 to 21,00 | 51,50 | 43,20 | 9,00 | 31,90 | 36
02001002039 | 32,20 to 32,40 | 0,50 to 4,00 | 15,00 to 21,00 | 51,50 | 43,20 | 9,00 | 31,90 | 36
02001002040 | 40,20 to 40,40 | 0,50 to 4,00 | 16,00 to 28,00 | 58,00 | 55,20 | 13,20 | 39,90 | 46
02001002041 | 40,20 to 40,40 | 0,50 to 4,00 | 19,00 to 28,00 | 58,00 | 55,20 | 13,20 | 39,90 | 46

Notes
Disassembly requires the MHPRP removal tool. Temporary sealing can be done with DTPB push-fit plugs. Video and 2D drawings are available. Measurements in the table are in millimetres.

Technical specifications
  • Model: PRPRA
  • Material: Polyamide 6 (PA6)
  • Sealing O-ring material: Chloroprene (CR)
  • Sealing rating: IP66 / IP68; Type 4X (UL 50E)
  • Panel hole range: 12 mm to 40 mm (depending on reference)
  • Panel thickness supported: 0.50 mm to 4.00 mm
  • Cable range (examples): 2.00 mm to 28.00 mm depending on reference
  • Temperature: -20 °C to +100 °C (continuous); short term -30 °C to +150 °C
  • Standards: VDE, UL, CSA, DNV; UL94 V2
  • Disassembly: requires MHPRP tool (included or available separately)
  • Temporary sealing accessory: DTPB plug (LDPE), operating temp -40 °C to +60 °C, push-fit
  • Available threads: Metric or PG depending on reference
  • Colours: Light grey RAL 7035, Dark grey RAL 7001, Black RAL 9005 (other colours on request)
  • Measurements unit: millimetres
