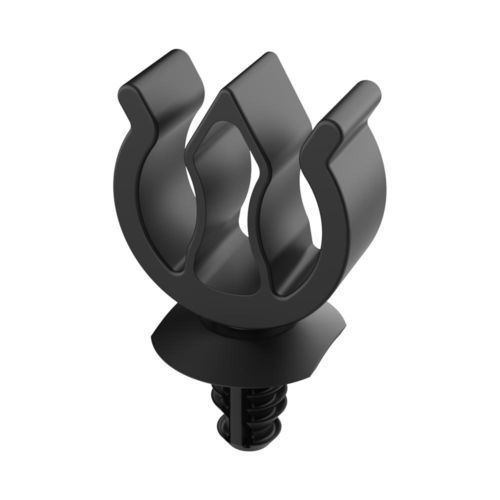

Polyamide cable clamp SGC

UV-resistantfor photovoltaic applications

Product overview
The SGC Cable Clamp with fir-tree clip secures one or two cables by a push‑in mounting into a pre‑drilled panel hole. The fir‑tree clip provides positive retention and high pull‑out resistance for panel‑mounted installations.

Features

• Manual cable insertion by simple finger pressure
• Two independent cable channels for improved retention when both are used
• Manufactured from heat‑stabilised, UV‑resistant PA66 (Polyamide 66)
• Durability for outdoor use with a service life of at least 20 years under normal operating conditions

Additional information
Drawing PDF: available
UL94: V2
IP: not specified
RoHS: compliant
Measures expressed in: Millimeters
Video: available

References table
Reference | Cable range (d) | Panel hole size | Panel thickness | L
02012000373 | 5.80 to 8.00 mm | 6.60 mm | 0.70 to 6.40 mm | 24.40 mm

Technical specifications

• Cable capacity: Up to 2 cables Ø 5.8–8.0 mm
• Material: PA66 (Polyamide 66), heat‑stabilised, UV‑resistant
• Colour: Black
• Flammability: UL94 V2
• Operating temperature: -20 °C to +85 °C
• Reference: 02012000373
• Cable range (d): 5.80 to 8.00 mm
• Panel hole size: 6.60 mm
• Panel thickness: 0.70 to 6.40 mm
• L: 24.40 mm
