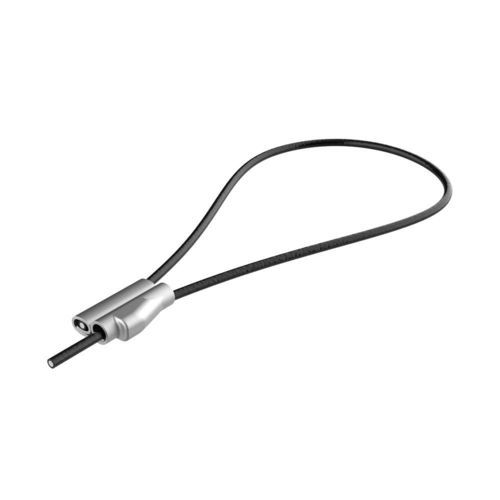

Stainless steel cable tie SBDT

polymerUV-resistantfor photovoltaic applications

Product overview
Our SBDT crimpless cable tie is manufactured from commercial aircraft-grade AISI 302/304 stainless steel and finished with a UV-protected vinyl (PVC) jacket. It provides a smooth, protective surface that helps prevent abrasion and damage to cable insulation while delivering high mechanical resistance for demanding industrial applications.

Key features

• Crimpless design for rapid installation without tools
• UV-protected vinyl (PVC) jacket to protect cable insulation
• Well suited for solar installations and applications requiring elevated mechanical and environmental resistance
• Manufactured from commercial aircraft-grade AISI 302/304 stainless steel

Variants / References
Reference | Max. Capacity Ø (d) | L | H | Retention force (N)
02012000480 | 24,10 | 102,00 | 1,60 | 222
02012000481 | 39,40 | 152,00 | 1,60 | 222
02012000482 | 58,40 | 203,00 | 1,60 | 222
02012000483 | 74,20 | 254,00 | 1,60 | 222
02012000484 | 98,60 | 305,00 | 1,60 | 222
02012000485 | 106,70 | 356,00 | 1,60 | 222
02012000486 | 161,50 | 508,00 | 1,60 | 222
02012000487 | 185,90 | 610,00 | 1,60 | 222
02012000488 | 218,20 | 711,00 | 1,60 | 222
02012000489 | 250,70 | 813,00 | 1,60 | 222
02012000490 | 282,70 | 914,00 | 1,60 | 222
02012000491 | 315,20 | 1.016,00 | 1,60 | 222
02012000492 | 346,20 | 1.118,00 | 1,60 | 222

Additional information
Measures expressed in: Millimeters
RoHS: Compliant
UL94: no information indicated
IP: no information indicated

Technical specifications

• Material: Commercial aircraft-grade AISI 302/304 stainless steel with UV-protected vinyl (PVC) jacket
• Design: Crimpless for quick installation without tools
• Suitable applications: Solar installations and other environments requiring high mechanical and environmental resistance
• Certification: UL 2S pending certification
• Operating temperature: -40 °C to +105 °C
• RoHS: Compliant
• Measures unit: Millimeters
