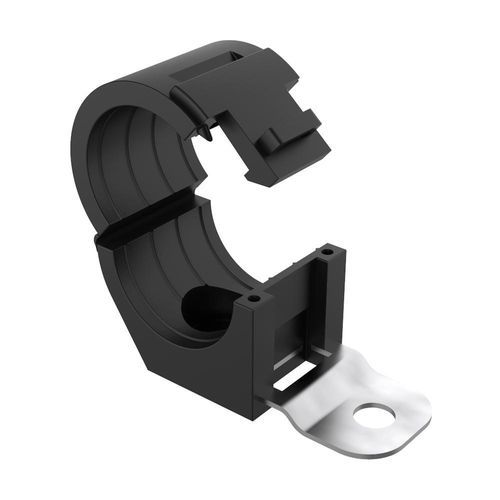

Stainless steel cable clamp ZAA

nylonreusablefor photovoltaic applications

Product description
The ZAA range of nylon cable clamps features a releasable design that allows installation independent of cable routing. Clamps can be unlocked and released to provide easier access during installation and maintenance. Internal diameter ribs offer additional axial retention.

Materials and compliance
Body: Nylon (PA66); temperature resistance up to 105º; flammability classification UL94 V2. Mounting plate: Steel (S); Stainless Steel (SS) available on request. An additional internal mounting hole improves clamping and prevents part rotation.

Applications

• Assembly of solar panel structures
• Various cable fixing and protection applications

Additional information
RoHS: compliant; IP: not specified; Measures expressed in: Millimeters; Drawing PDF: available from product page; Video: available from product page.

Dimensions / References
Reference | Maximum bundle diameter (d) | A | B | E | H | D
02001002005 | 38,10 | 38,10 | 20,80 | 48,30 | 57,40 | 10,40
02001002006 | 50,80 | 38,10 | 17,80 | 55,60 | 71,60 | 10,40
02001002007 | 76,20 | 38,10 | 20,80 | 68,10 | 97,30 | 10,40

Technical characteristics / specifications

• Model: ZAA
• Material: Nylon (PA66) body; mounting plate Steel (S); Stainless Steel (SS) option
• Temperature resistance: 105º
• Flammability: UL94 V2
• Ribs in internal diameter provide axial retention
• Additional internal mounting hole to improve clamping and prevent rotation
• Measures unit: millimeters
• RoHS: compliant
• IP rating: not specified
• Available references: 02001002005, 02001002006, 02001002007
