Rubber cable grommet HYPAA

PVClinoleumrubber

Description

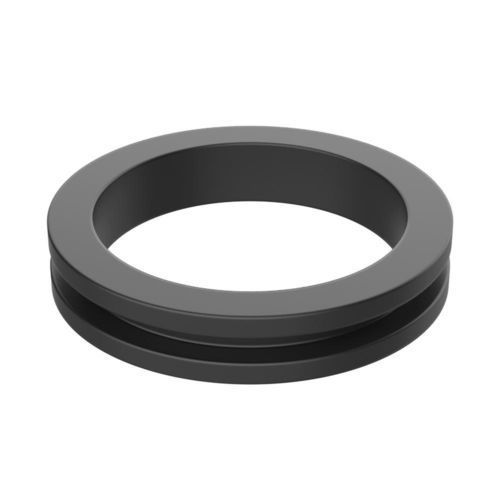

This open grommet (split/open type) HYPAA guides and protects cables and wires passing through metal panels. Snap-in installation; available in multiple materials and sizes to match panel hole diameter and panel thickness.

Compliance and files
Drawing PDF: available
UL94: HB
IP: not specified
RoHS: Yes
Measures expressed in: Millimeters
Media: product renderings, 2D drawing and product video available

Available references (table)
Reference | Hole size | Panel thickness | d | H | D | Material
02001000449 | 19,00 | 1,60 | 16,00 | 6,40 | 24,00 | PVC
01012000079 | 4,30 | 1,50 | 2,50 | 6,00 | 7,50 | NR
01012000001 | 4,80 | 1,60 | 3,20 | 6,40 | 8,00 | PVC
02001000007 | 5,00 | 1,00 | 3,00 | 5,50 | 10,00 | CR
02001000951 | 6,00 | 1,00 | 4,00 | 5,00 | 9,00 | EPDM
01012000002 | 6,00 | 1,50 | 3,00 | 5,50 | 10,00 | PVC
02001000182 | 6,00 | 1,50 | 3,50 | 5,50 | 10,00 | PVC
02001000952 | 6,00 | 1,50 | 3,50 | 5,50 | 10,00 | TPE
01012000003 | 6,50 | 2,00 | 2,00 | 6,00 | 11,00 | CR
02001000953 | 6,00 | 1,50 | 4,00 | 5,50 | 10,20 | TPE

Technical characteristics / specifications

• Model/series: HYPAA
• Brand: ISC Plastic Parts
• Type: Open grommet (split/open type) for metal panels
• Application: Protection and guidance of cables and wires through panel holes
• Installation: Snap-in, quick and simple
• Materials available (per reference): PVC, NR, CR, EPDM, TPE, SBR
• Dimensional parameters listed: Hole size, Panel thickness, d, H, D (mm)
• Standards & compliance: UL94 HB; RoHS
• IP rating: not specified
• Files: 2D drawing (PDF), product renderings and product video available
