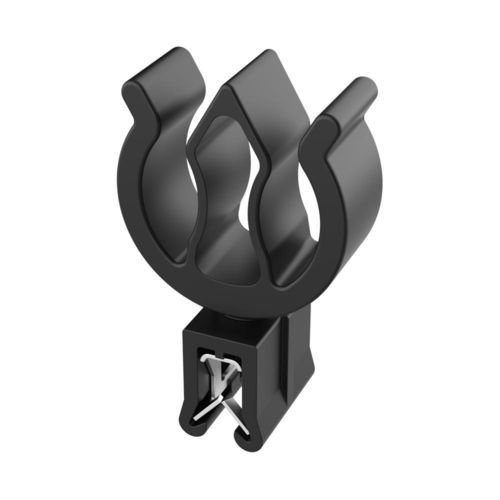

Stainless steel cable clamp SFV

plasticnylonsnap-on

Product overview
Our SFV clip mounts onto 1–3 mm panel thicknesses, typical of solar module frames, providing secure fixation without a mounting hole.

Functionality
The push-on edge design enables fast installation and high axial retention. The plastic wire management insulates cables from aluminum frames to meet UL 3741. Cables insert with fingertip pressure and retention increases when both cable bays are filled.

Key features

• Panel thickness: 1–3 mm
• Cable capacity: up to 2 cables Ø 5.8–8.0 mm
• Metal clip material: 304 stainless steel
• Body material: Black heat- and UV-stabilized nylon
• Temperature range: 0°C to 85°C (nylon) / -40°C to 300°C (metal clip)
• Nylon flammability: UL 94 V-2
• RoHS: Compliant
• IP: Not specified
• Units: millimeters

Reference table
Reference | Cable range (d) | Panel thickness | D | B | L | H | C
02012000372 | 5.8 to 8.0 | 1.00 to 3.00 | 35.60 | 9.70 | 22.10 | 23.60 | 13.50

Technical specifications

• Model: SFV
• Mounting: Push-on edge mount, no mounting hole required
• Suitable panel thickness: 1–3 mm
• Cable capacity: up to 2 cables Ø 5.8–8.0 mm
• Metal component: 304 stainless steel clip
• Body material: Black heat- and UV-stabilized nylon
• Temperature limits: nylon 0°C to 85°C; metal clip -40°C to 300°C
• Flammability rating (nylon): UL 94 V-2
• Standards addressed: UL 3741 (cable insulation from aluminum frames)
• Measurements unit: millimeters
