Equipment foot LKM

PVstainless steelleveling

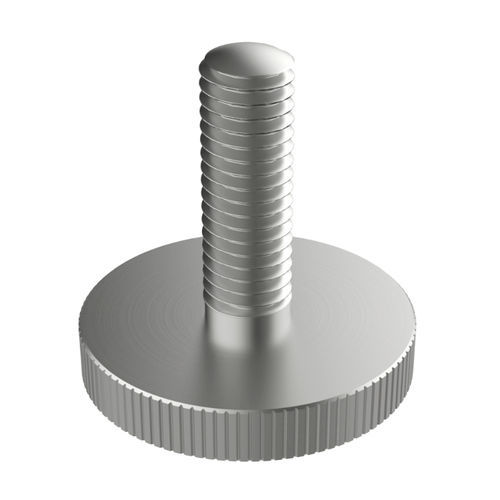

Description Our fixed leveling foot LKM is manufactured from AISI 303 stainless steel (EN 1.4305), ISC standard quality optimized for machining. It is intended for medium loads (verify by reference) and features a solid knurled stainless steel base to aid grip during installation. Selected references are available with an NBR 80 Shore anti-slip base; steel nut available on minimum order.

Key features

• Material: AISI 303 stainless steel (EN 1.4305)
• Application: Medium loads (to be verified according to reference)
• Base: Solid knurled stainless steel base for easier installation
• Options: NBR 80 Shore anti-slip base and steel nut available on minimum order
• Corrosion resistance options: consider AISI 304 (EN 1.4301) for general use or AISI 316 (EN 1.4401) for aggressive or marine environments

Available references (excerpt)
Reference | Metric thread | L (mm) | D (mm) | H (mm) | Material | Antiskid base | Maximum load (N)
04500500000 | M5 | 10.00 | 20.00 | 4.00 | SS303 | No | 5,000
04500500001 | M5 | 12.00 | 20.00 | 4.00 | SS303 | No | 5,000
04500500002 | M5 | 16.00 | 20.00 | 4.00 | SS303 | No | 5,000
04500500003 | M5 | 20.00 | 20.00 | 4.00 | SS303 | No | 5,000
04500500004 | M6 | 12.00 | 24.00 | 5.00 | SS303 | Optional (some refs with NBR) | 5,000
04500500005 | M6 | 16.00 | 24.00 | 5.00 | SS303 | No | 5,000
04500500006 | M6 | 20.00 | 24.00 | 5.00 | SS303 | No | 5,000
04500500007 | M6 | 25.00 | 24.00 | 5.00 | SS303 / SS304 / SS316 (depending on ref) | Optional (some materials have antiskid) | 5,000
04500500008 | M6 | 30.00 | 24.00 | 5.00 | SS303 | Optional | 5,000
04500500009 | M8 | 12.00 | 30.00 | 6.00 | SS303 | Optional | 6,000
04500500010 | M8 | 16.00 | 30.00 | 6.00 | SS303 | Optional | 6,000
04500500011 | M8 | 20.00 | 30.00 | 6.00 | SS303 | Optional | 6,000
04500500012 | M8 | 25.00 | 30.00 | 6.00 | SS303 | Optional | 6,000
04500500013 | M8 | 30.00 | 30.00 | 6.00 | SS303 | Optional | 6,000

Compliance & files

• UL94: not specified
• IP: not specified
• RoHS: compliant
• Units: millimeters
• Video available for product demonstration

Technical specifications

• Model / series: LKM
• Primary material: AISI 303 stainless steel (EN 1.4305)
• Optional materials for increased corrosion resistance: AISI 304 (EN 1.4301), AISI 316 (EN 1.4401)
• Base type: Solid knurled stainless steel; selected references available with NBR 80 Shore anti-slip base
• Applications: Fixed leveling foot for medium loads (maximum load varies by reference; see table)
• Variants: Metric threads M5, M6, M8 and multiple lengths L and diameters D/H as listed
• RoHS: compliant
• Units: millimeters
