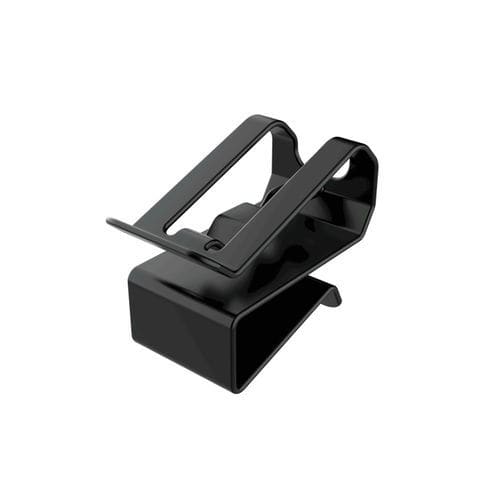

Edge clamp SFF

Product overview
The SFF glass panel edge clip secures and guides two homogeneous cables on glass panels. Manufactured in AISI 304 stainless steel with a TPE coating, it provides mechanical strength, corrosion resistance and electrical insulation to protect both the glass surface and cable insulation.

Installation and removal

• Install by applying manual pressure until the locking tab engages.
• Removal or repositioning requires only a screwdriver.

Design features

• Material: AISI 304 stainless steel with TPE coating.
• Rounded edges to prevent cable damage.
• Tab slot for use with cable ties or clamps for additional fastening.
• Material thickness: 0.635 mm for strength and durability.

Certifications and ratings

• c-UL-us approved.
• RoHS: compliant.
• UL94: not specified.
• IP rating: not specified.
• Certified service life: at least 20 years.
• Operating temperature range: -40 °C to +300 °C.

Applications

• Photovoltaic modules with glass surfaces.
• Electrical installations and control panels.
• Marine installations.
• Telecommunications equipment.
• Industrial machinery where orderly, safe and durable cable management is required.

Variants / References

• Reference 02012000310 — Cable range: 5.10–7.60 mm — Panel thickness: 3.20–6.40 mm — C: 25.10 mm — B: 13.20 mm — H: 11.40 mm

Technical specifications

• Model: SFF.
• Material: AISI 304 stainless steel with TPE coating.
• For two homogeneous cables.
• Material thickness: 0.635 mm.
• Approvals: c-UL-us.
• RoHS: compliant.
• Operating temperature: -40 °C to +300 °C.
• Certified service life: at least 20 years.
• Installation: manual pressure; locking tab fixation; screwdriver for removal/repositioning.
• Rounded edges and tab slot for additional fastening with cable ties or clamps.
• All dimensions in millimetres.
