Not specified pipe protector DCTU
push-fitfor photovoltaic applications

Not specified pipe protector - DCTU - ISC PLASTIC PARTS - push-fit / for photovoltaic applications
Not specified pipe protector - DCTU - ISC PLASTIC PARTS - push-fit / for photovoltaic applications
Not specified pipe protector - DCTU - ISC PLASTIC PARTS - push-fit / for photovoltaic applications - image - 2
Add to favorites
Compare this product

Characteristics

Material
not specified
Fixation type
push-fit
Other characteristics
for photovoltaic applications

Description

Product description

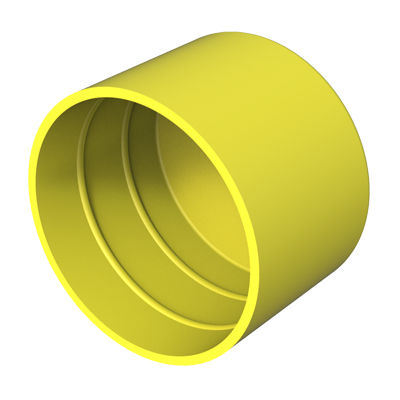

Protector cap DCTU for BSP/GAS threads and steel tubes. Designed to protect threads and tube ends from dust, dirt and impact during storage and transport. The fluted interior ensures a positive fit and reduces pressure build-up; some references are available with ventilation holes for pressure equalization.

Certificates / Standards / Documentation
  • Drawing PDF: available (download link on product page)
  • UL94: not specified
  • IP: not specified
  • RoHS: Compliant
  • Measures expressed in: Millimeters
  • Media: product render and demonstration video (MP4) available


References (Reference | d | H | BSP / GAS)
01500701060 | 4,00 | 22,00 | ·
01500701061 | 5,00 | 18,00 | ·
01500701062 | 6,00 | 18,00 | ·
01500701063 | 6,35 | 13,00 | ·
01500701064 | 7,00 | 18,60 | ·
01500701065 | 8,00 | 17,20 | ·
01500701066 | 9,60 | 14,00 | ·
01500701067 | 10,20 | 18,60 | 1/8 in
01500701068 | 11,00 | 19,00 | ·
01500701069 | 12,00 | 18,00 | ·
01500701070 | 12,70 | 19,00 | ·
01500701071 | 13,00 | 18,00 | ·
01500701072 | 13,70 | 18,00 | 1/4 in
01500701073 | 14,00 | 18,00 | ·
01500701074 | 15,00 | 19,00 | ·
01500701075 | 16,00 | 20,00 | ·
01500701076 | 17,20 | 20,00 | 3/8 in
01500701077 | 18,00 | 18,00 | ·
01500701078 | 19,00 | 20,00 | ·
01500701079 | 20,00 | 20,00 | ·
01500701080 | 21,30 | 20,00 | DN15 · 1/2 in
01500701081 | 22,00 | 21,00 | ·
01500701082 | 23,20 | 19,00 | ·
01500701083 | 24,00 | 18,00 | ·
01500701084 | 24,80 | 17,00 | ·
01500701085 | 25,00 | 80,00 | ·
01500701086 | 25,40 | 20,00 | ·
01500701087 | 26,00 | 18,00 | ·
01500701088 | 26,90 | 27,00 | DN20 · 3/4 in
01500600287 | 26,90 | 80,00 | ·
01500701089 | 28,00 | 22,00 | ·
01500701090 | 30,00 | 27,50 | ·
01500701091 | 31,80 | 27,00 | ·
01500701092 | 31,80 | 90,00 | ·
01500701093 | 33,70 | 23,00 | DN25 · 1 in
01500701094 | 35,00 | 27,00 | ·
01500701095 | 38,10 | 27,00 | ·
01500701096 | 38,10 | 90,00 | ·
01500701097 | 39,00 | 17,00 | ·
01500701098 | 40,00 | 27,00 | ·
01500701099 | 41,50 | 25,00 | ·
01500701100 | 42,40 | 32,00 | DN32 · 1 1/4 in
01500701101 | 42,40 | 80,00 | ·
01500701102 | 44,50 | 35,00 | ·
01500701103 | 44,50 | 80,00 | ·
01500701104 | 45,40 | 20,00 | ·
01500701105 | 48,30 | 32,00 | DN40 · 1 1/2 in
01500701106 | 50,80 | 27,00 | ·
01500701107 | 51,00 | 90,00 | ·
01500701108 | 52,00 | 33,00 | ·
01500701109 | 52,80 | 28,00 | ·
01500701110 | 54,00 | 35,00 | 1 · 3/4 in
01500701111 | 55,00 | 29,00 | ·
01500701112 | 57,00 | 35,00 | ·
01500701113 | 57,00 | 80,00 | ·
01500701114 | 59,00 | 30,00 | ·
01500701115 | 60,30 | 32,00 | DN50 · 2 in
01500701116 | 63,50 | 32,00 | ·
01500701117 | 63,50 | 90,00 | ·
01500701118 | 65,00 | 35,50 | ·
01500701119 | 66,50 | 35,00 | ·
01500701120 | 67,00 | 36,00 | ·
01500701121 | 70,00 | 30,00 | ·
01500701122 | 73,00 | 37,00 | ·
01500701123 | 75,00 | 38,00 | ·
01500701124 | 76,10 | 32,00 | DN65 · 2 1/2 in
01500701125 | 77,00 | 35,00 | ·
01500701126 | 78,00 | 26,00 | ·
01500701127 | 79,40 | 26,00 | ·
01500701128 | 81,00 | 30,00 | ·
01500701129 | 82,50 | 30,00 | ·
01500701130 | 83,00 | 30,00 | 2 · 3/4 in
01500701131 | 85,00 | 30,00 | ·
01500701132 | 88,90 | 31,70 | DN80 · 3 in
01500701133 | 88,90 | 90,00 | ·
01500701134 | 90,00 | 90,00 | ·
01500701135 | 92,40 | 24,00 | ·
01500701136 | 95,00 | 34,00 | ·
01500701137 | 100,00 | 40,00 | ·
01500701138 | 101,60 | 42,00 | ·
01500701139 | 102,00 | 40,00 | ·
01500701140 | 103,00 | 39,00 | ·
01500701141 | 105,00 | 39,00 | ·
01500701142 | 106,00 | 40,00 | ·
01500701143 | 108,00 | 38,00 | ·
01500701144 | 108,50 | 90,00 | ·
01500701145 | 110,00 | 38,00 | ·
01500701146 | 114,30 | 38,00 | DN100 · 4 in
01500701147 | 114,30 | 90,00 | ·
01500701148 | 116,30 | 40,00 | ·
01500701149 | 117,50 | 40,00 | ·
01500701150 | 121,00 | 38,00 | ·
01500701151 | 125,00 | 38,00 | ·
01500701152 | 126,00 | 40,00 | ·
01500701153 | 127,00 | 40,00 | DN115 · 4 1/2 in
01500701154 | 130,00 | 40,00 | ·
01500701155 | 133,00 | 40,00 | ·
01500701156 | 133,70 | 90,00 | ·
01500701157 | 136,00 | 40,00 | ·
01500701158 | 139,70 | 38,00 | DN125 · 5 in
01500701159 | 141,30 | 40,00 | ·
01500701160 | 146,00 | 40,00 | ·
01500701161 | 149,00 | 40,00 | ·
01500701162 | 151,40 | 41,50 | ·
01500701163 | 152,40 | 40,00 | DN140 · 5 1/2 in
01500701164 | 156,00 | 40,00 | ·
01500701165 | 159,00 | 37,00 | ·
01500701167 | 165,00 | 65,00 | ·
01500701168 | 165,10 | 40,00 | ·
01500701169 | 168,30 | 36,00 | DN150 · 6 in
01500701170 | 168,30 | 100,00 | ·
01500701171 | 176,00 | 42,50 | ·
01500701172 | 177,80 | 40,00 | ·
01500701173 | 180,00 | 39,00 | ·
01500701174 | 185,00 | 41,50 | ·
01500701175 | 188,70 | 100,00 | ·
01500701176 | 193,70 | 42,00 | ·
01500701177 | 200,00 | 38,50 | ·
01500701178 | 210,00 | 35,00 | ·
01500701179 | 219,10 | 42,00 | DN200 · 8 in
01500701180 | 225,00 | 39,00 | ·
01500701181 | 232,00 | 42,00 | ·
01500701182 | 242,00 | 48,00 | ·
01500701183 | 244,50 | 43,00 | ·
01500701184 | 250,00 | 47,00 | ·
01500701185 | 267,00 | 43,00 | ·
01500701186 | 273,00 | 43,00 | DN250 · 10 in
01500701187 | 323,90 | 55,00 | DN300 · 12 in
01500701188 | 355,60 | 57,00 | DN350 · 14 in
01500701189 | 368,00 | 55,00 | ·
01500701190 | 400,00 | 65,00 | ·
01500701191 | 406,40 | 62,00 | DN400 · 16 in
01500701192 | 419,00 | 60,00 | ·
01500701193 | 450,00 | 62,00 | ·
01500701194 | 457,20 | 62,00 | DN450 · 18 in
01500701195 | 508,00 | 67,00 | DN500 · 20 in
01500701196 | 558,80 | 60,00 | DN550 · 22 in
01500701197 | 609,60 | 62,00 | DN600 · 24 in
01500701198 | 660,40 | 115,00 | DN650 · 26 in
01500701199 | 711,20 | 115,00 | DN700 · 28 in
01500701200 | 762,00 | 115,00 | DN750 · 30 in
01500701201 | 812,80 | 115,00 | DN800 · 32 in
01500701202 | 863,60 | 155,00 | DN850 · 34 in
01500701211 | 914,40 | 115,00 | DN900 · 36 in
01500701203 | 1.016,00 | 115,00 | DN1000 · 40 in
01500701204 | 1.066,80 | 115,00 | DN1050 · 42 in
01500701205 | 1.117,60 | 125,00 | DN1100 · 44 in
01500701206 | 1.219,20 | 115,00 | DN1200 · 48 in
01500701207 | 1.320,80 | 150,00 | DN1300 · 52 in
01500701208 | 1.422,40 | 150,00 | DN1400 · 56 in
01500701209 | 1.524,00 | 150,00 | DN1500 · 60 in
01500701210 | 1.625,60 | 150,00 | DN1600 · 64 in

Technical specifications
  • Brand: ISC Plastic Parts
  • Model / reference series: DCTU
  • Application: protector cap for steel tubes and BSP/GAS threads
  • Standards: adapted to ISO (dimensions in millimetres)
  • Internal design: fluted interior for positive fitting and reduced pressure increase
  • Options: some references available with ventilation holes
  • RoHS: Compliant
  • Materials: designed to fit steel tubes (cap material not explicitly stated)
  • Dimensions: listed in the references table above (d and H in mm)
  • Available media: 2D drawings (PDF) and product video (MP4)
