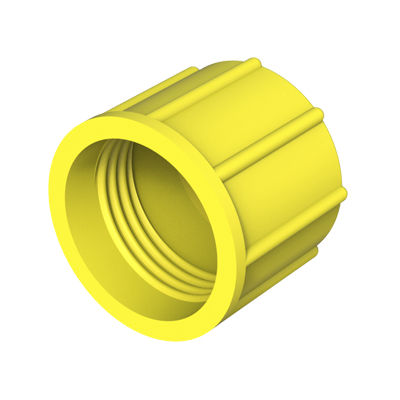

Threaded cap DCROAroundplasticbrass
Add to favorites
Compare this product
Characteristics
- Type
- threaded
- Configuration
- round
- Material
- plastic, brass
- Applications
- for pipes, leak-proofing, PV
- Other characteristics
- with seal
- Diameter
Min.: 14 mm
(0.551 in)Max.: 68 mm
(2.677 in)
Description
Product description
Our DCROA threaded caps protect external threads of pipes, fittings and other threaded elements. Caps are available with an assembled sealing washer made of nitrile rubber (NBR) for applications requiring a hermetic seal to prevent oil leaks in hydraulic components or air leaks in pneumatic components.
Sealing washer materials
Certifications & features
References and dimensions
Reference | Suitable for | D | H | L | Thread
01500601596 | M10 x 1,00 | 14,00 | 8,00 | 9,00 | M
01500601597 | M12 x 1,50 | 16,00 | 12,00 | 13,50 | M
01500601598 | M14 x 1,50 | 18,00 | 12,00 | 13,50 | M
01500601599 | M16 x 1,50 | 21,00 | 12,00 | 13,50 | M
01500601600 | M18 x 1,50 | 22,00 | 12,00 | 13,50 | M
01500601601 | M20 x 1,50 | 25,00 | 14,00 | 15,50 | M
01500601602 | M22 x 1,50 | 28,00 | 14,00 | 15,50 | M
01500601603 | M24 x 1,50 | 30,00 | 14,00 | 15,50 | M
01500601604 | M26 x 1,50 | 34,00 | 11,00 | 13,00 | M
01500601605 | M30 x 2,00 | 38,00 | 14,00 | 16,00 | M
01500601606 | M36 x 2,00 | 44,00 | 17,00 | 19,00 | M
01500601607 | M42 x 2,00 | 50,00 | 15,00 | 17,00 | M
01500601608 | M45 x 2,00 | 53,00 | 15,00 | 17,00 | M
01500601609 | M52 x 2,00 | 60,00 | 15,00 | 17,00 | M
01500601610 | 1/4 in | 18,00 | 12,00 | 13,50 | GAS/BSP
01500601611 | 3/8 in | 21,00 | 12,00 | 13,50 | GAS/BSP
01500601612 | 1/2 in | 25,00 | 14,00 | 15,50 | GAS/BSP
01500601613 | 5/8 in | 28,00 | 14,00 | 15,50 | GAS/BSP
01500601614 | 3/4 in | 32,00 | 14,00 | 16,00 | GAS/BSP
01500601615 | 1 in | 39,40 | 14,00 | 16,00 | GAS/BSP
01500601616 | 1 1/4 in | 47,70 | 17,70 | 19,70 | GAS/BSP
01500601617 | 1 1/2 in | 56,00 | 17,00 | 19,00 | GAS/BSP
01500601618 | 2 in | 68,00 | 18,00 | 20,00 | GAS/BSP
01500601587 | 7/16 · 20 | 15,00 | 12,00 | 13,50 | UNF
01500601588 | 1/2 · 20 | 18,00 | 15,00 | 16,50 | UNF
01500601589 | 9/16 · 18 | 18,00 | 12,00 | 13,50 | UNF
01500601590 | 5/8 · 18 | 19,30 | 14,20 | 15,00 | UNF
01500601591 | 3/4 · 16 | 24,00 | 18,00 | 19,50 | UNF
01500601592 | 7/8 · 14 | 27,00 | 20,00 | 21,50 | UNF
01500601593 | 1 1/16 · 12 | 34,00 | 23,00 | 25,00 | UN
01500601594 | 1 5/16 · 12 | 40,00 | 24,00 | 26,00 | UN
01500601595 | 1 5/8 · 12 | 50,00 | 17,00 | 19,00 | UN
Notes
Sealing washer assembled by default in nitrile rubber (NBR). Other washer materials available: EPDM, Silicone. RoHS compliant. Dimensions in millimetres. 2D drawing and product video available.
Our DCROA threaded caps protect external threads of pipes, fittings and other threaded elements. Caps are available with an assembled sealing washer made of nitrile rubber (NBR) for applications requiring a hermetic seal to prevent oil leaks in hydraulic components or air leaks in pneumatic components.
Sealing washer materials
- Nitrile rubber (NBR)
- EPDM
- Silicone
Certifications & features
- UL94: not specified
- IP: not specified
- RoHS: Yes
- Dimensions expressed in: millimetres
- Video: available
References and dimensions
Reference | Suitable for | D | H | L | Thread
01500601596 | M10 x 1,00 | 14,00 | 8,00 | 9,00 | M
01500601597 | M12 x 1,50 | 16,00 | 12,00 | 13,50 | M
01500601598 | M14 x 1,50 | 18,00 | 12,00 | 13,50 | M
01500601599 | M16 x 1,50 | 21,00 | 12,00 | 13,50 | M
01500601600 | M18 x 1,50 | 22,00 | 12,00 | 13,50 | M
01500601601 | M20 x 1,50 | 25,00 | 14,00 | 15,50 | M
01500601602 | M22 x 1,50 | 28,00 | 14,00 | 15,50 | M
01500601603 | M24 x 1,50 | 30,00 | 14,00 | 15,50 | M
01500601604 | M26 x 1,50 | 34,00 | 11,00 | 13,00 | M
01500601605 | M30 x 2,00 | 38,00 | 14,00 | 16,00 | M
01500601606 | M36 x 2,00 | 44,00 | 17,00 | 19,00 | M
01500601607 | M42 x 2,00 | 50,00 | 15,00 | 17,00 | M
01500601608 | M45 x 2,00 | 53,00 | 15,00 | 17,00 | M
01500601609 | M52 x 2,00 | 60,00 | 15,00 | 17,00 | M
01500601610 | 1/4 in | 18,00 | 12,00 | 13,50 | GAS/BSP
01500601611 | 3/8 in | 21,00 | 12,00 | 13,50 | GAS/BSP
01500601612 | 1/2 in | 25,00 | 14,00 | 15,50 | GAS/BSP
01500601613 | 5/8 in | 28,00 | 14,00 | 15,50 | GAS/BSP
01500601614 | 3/4 in | 32,00 | 14,00 | 16,00 | GAS/BSP
01500601615 | 1 in | 39,40 | 14,00 | 16,00 | GAS/BSP
01500601616 | 1 1/4 in | 47,70 | 17,70 | 19,70 | GAS/BSP
01500601617 | 1 1/2 in | 56,00 | 17,00 | 19,00 | GAS/BSP
01500601618 | 2 in | 68,00 | 18,00 | 20,00 | GAS/BSP
01500601587 | 7/16 · 20 | 15,00 | 12,00 | 13,50 | UNF
01500601588 | 1/2 · 20 | 18,00 | 15,00 | 16,50 | UNF
01500601589 | 9/16 · 18 | 18,00 | 12,00 | 13,50 | UNF
01500601590 | 5/8 · 18 | 19,30 | 14,20 | 15,00 | UNF
01500601591 | 3/4 · 16 | 24,00 | 18,00 | 19,50 | UNF
01500601592 | 7/8 · 14 | 27,00 | 20,00 | 21,50 | UNF
01500601593 | 1 1/16 · 12 | 34,00 | 23,00 | 25,00 | UN
01500601594 | 1 5/16 · 12 | 40,00 | 24,00 | 26,00 | UN
01500601595 | 1 5/8 · 12 | 50,00 | 17,00 | 19,00 | UN
Notes
Sealing washer assembled by default in nitrile rubber (NBR). Other washer materials available: EPDM, Silicone. RoHS compliant. Dimensions in millimetres. 2D drawing and product video available.
