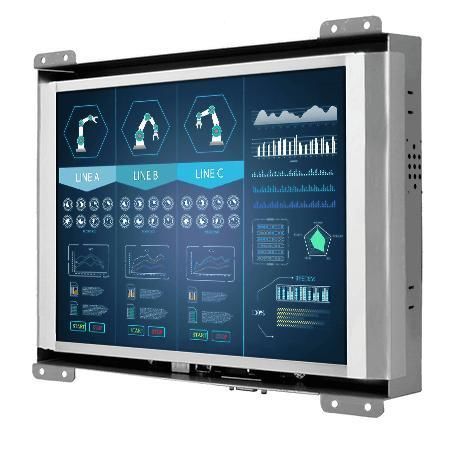

LCD monitor R10L100-OFT2

resistive touch screenindustrialPOS

OverviewThe Winmate R10L100-OFT2 is a 10.4" open-frame display engineered for industrial visualization, control rooms and equipment monitoring. It provides 1024 x 768 resolution with VGA as standard input and optional HDMI/DVI. The open-frame module and metal enclosure allow flexible OEM integration, with VESA and rear mounting and a fanless, low‑power design suitable for long-term embedded use.

Key Features

• 10.4" LCD, 1024 x 768 resolution
• VGA input (default); HDMI and DVI optional
• Open frame architecture for OEM integration into kiosks, ATMs, vending machines and equipment
• VESA mount and rear mount options
• Fanless metal enclosure and low power consumption

Product HighlightsThe R10L100-OFT2 emphasises a compact open-frame module that can be integrated without a bezel or full enclosure. It is designed for efficient heat dissipation and continuous operation, making it suitable for embedded systems and industrial installations where space and airflow are constrained.

Reliability and Image QualityManufactured to industrial standards, the display delivers consistent image performance with a 1000:1 contrast ratio and 350 nits panel brightness. Multiple panel and glass options are available to meet application requirements and environment constraints.

Touch and Customization OptionsTouch configurations (resistive, SAW) and protection glass without touch are available as options. Customizable parameters include panel brightness, glass surface treatment, display ports, power input (12V DC standard, 24V optional) and mechanical mounting to match OEM needs.

Applications

• Industrial visualization and equipment monitoring
• Control rooms and operator panels
• Kiosks, POS, ATMs and vending machines
• OEM integration and embedded systems

Certifications

• CE
• FCC

Technical Specifications

• Model: R10L100-OFT2
• Commercial name: 10.4" Open Frame Display
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 88 / 88 / 88 / 88
• Display color: 16.2M colors
• Active area: 210.4 x 157.8 mm
• Touch / Glass (optional): Resistive touch; Protection glass without touch; SAW touch
• USB: 1 x USB for touch (optional)
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio (optional): Audio line-in (3.5 mm); 2 x speakers (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certification: CE, FCC
• Mechanical dimension: 260 x 215 x 38 mm
• Weight: 1.3 kg
• Mounting: VESA mount / Rear mount
• Enclosure: Metal
• Cooling system: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
• Power rating: 12V DC input (24V DC optional)
• Control keys: 5 keys (-, +, Power, Esc, Enter)
