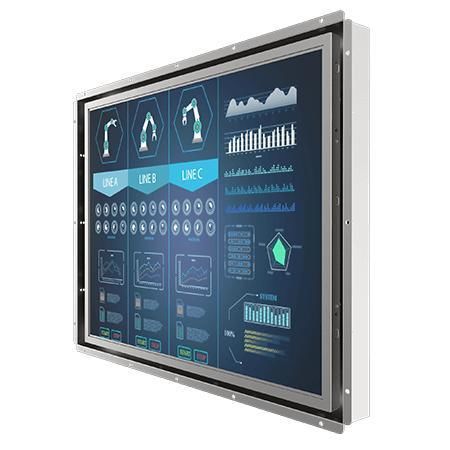

Resistive touch screen monitor R21L100-OFM1

for medical applicationsPOSfor digital signage

Overview
Winmate R21L100-OFM1 is a 21.3 in open frame display engineered for industrial visualization, control rooms and equipment monitoring. The unit provides 1600 x 1200 resolution, multiple video inputs and a fanless metal enclosure suited for long-life, mission-critical installations.

Key features

• 21.3 in display with 1600 x 1200 resolution
• VGA input (default); HDMI and DVI available as options
• Open frame design for embedded integration
• VESA and rear mounting options
• Panel brightness 1000 nits; contrast ratio 1800:1; 16.8M colors
• Fanless cooling and metal enclosure

Applications

• Industrial HMI and machine visualization
• Control rooms and monitoring stations
• ATMs, kiosks, vending machines and information displays
• Transportation, maritime and medical display integrations

Mounting and integration
The open frame module is designed for easy integration into custom housings or equipment. VESA and rear mounting options enable flexible installation. Standard accessory set can include VGA and HDMI cables, AC/DC adapter, power cord and VESA screws to simplify deployment.

Customization & options
Available options include resistive touch panel or protection glass, USB interface for touch, alternative brightness configurations, additional audio (line-in / speakers), remote controller and selectable power input (12V DC standard, 24V DC optional). Custom housing materials and front treatments are supported for OEM projects.

Certifications

• CE
• FCC

Technical specifications

• Size: 21.3 inches
• Resolution: 1600 x 1200
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass (Optional)
• Panel Brightness: 1000 nits
• Contrast Ratio: 1800:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.8M Colors
• Active Area: 432 x 324 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch (optional)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x Speaker (optional)
• Dimension: 509 x 380 x 65 mm
• Mounting: VESA Mount / Rear Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessory (included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Control / Buttons: 5 keys ( -, +, Power, Esc, Enter )
