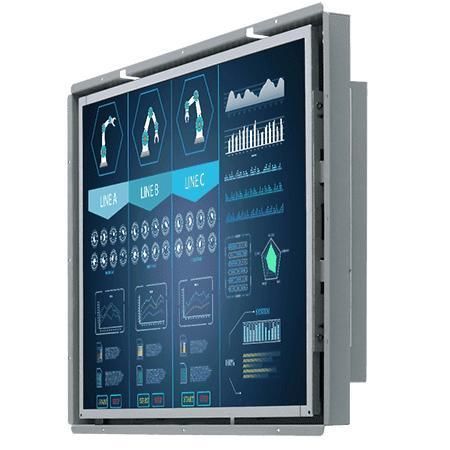

LCD monitor R19L300-OFM1

resistive touch screenfor digital signagefor HMI interface

Overview
Winmate R19L300-OFM1 is a 19-inch open-frame display designed for industrial visualization, control rooms, and equipment monitoring. It delivers reliable picture quality and long lifecycle availability for rugged and mission-critical environments. The display is suited for OEMs, system integrators and industrial buyers seeking integration-ready solutions.

Key Features

• 19” display with 1280 x 1024 resolution
• VGA and HDMI input
• Open frame design
• VESA mountable

Product Highlights

• Low Power Consumption: Designed for low power usage and effective heat dissipation to support long-term operation in production facilities.
• Rear and VESA Mounting: Multiple mounting options including rear and VESA mounting for flexible installation.
• Open Frame Monitor: Provides an LCD with supporting structure to protect electronics without an enclosure or bezel — suitable for ATMs, vending machines, casino monitors, airport information displays and mall kiosks.
• High Reliability for Industrial Applications: Rugged construction and selectable housing materials and optional features to fit different use cases.
• Outstanding Image Quality: Assembled in clean-room conditions to ensure image quality and reliability.
• Display Ports and Customization: Wide range of customization options including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and regional power plug options.

Certifications

• CE
• FCC

Technical specifications

• Model: R19L300-OFM1
• Brand: Winmate
• Display Size: 19.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch Function (Optional); SAW Touch (Surface Acoustic Wave) (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports: USB Port: 1 x USB for touch screen (optional); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line-in (3.5mm) (optional); 2 x Speaker (optional)
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC input; 24V DC input (optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
